Preventa module Cat.4 potential free NC/NC, NO/NC & PNP/PNP 24vac/dc spring
Preventa module Cat.4 potential free NC/NC, NO/NC & PNP/PNP 24vac/dc spring
Preventa module Cat.4 potential free NC/NC, NO/NC & PNP/PNP 24vac/dc spring - Image 2

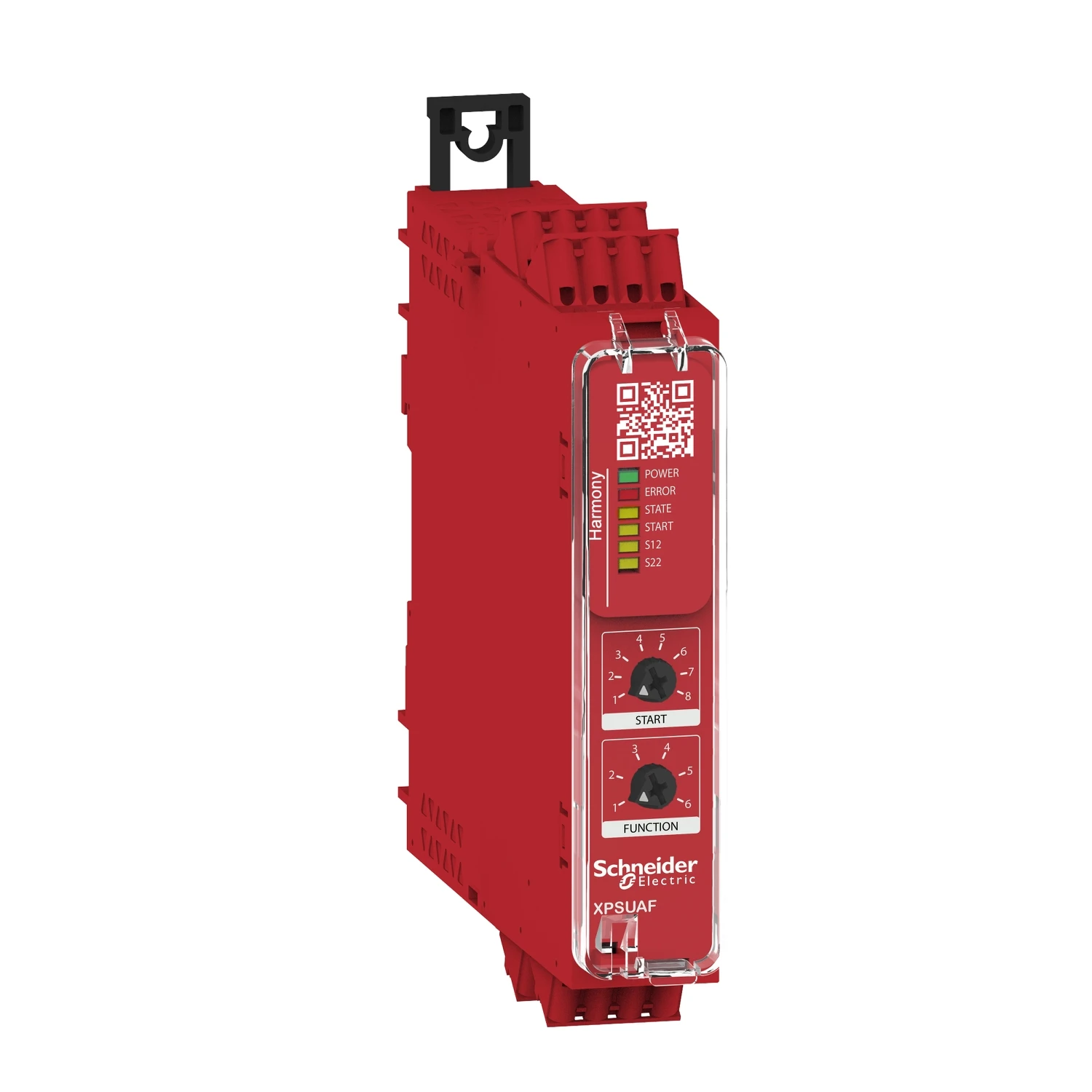

Preventa module Cat.4 potential free NC/NC, NO/NC & PNP/PNP 24vac/dc spring - Image 3
Preventa module Cat.4 potential free NC/NC, NO/NC & PNP/PNP 24vac/dc spring - Image 4

Preventa module Cat.4 potential free NC/NC, NO/NC & PNP/PNP 24vac/dc spring

£289.76 Incl. VAT

Preventa module Cat.4 potential free NC/NC, NO/NC & PNP/PNP 24vac/dc spring · · · This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP sensor, RFID safety switch or Safety light curtain. · · The safety relay is powered with 24V AC/DC, and equipped with a spring removable terminal block. · · This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. · · This safety relay embeds 2 safety inputs, 3 ON/OFF configurable pulsed outputs, 3 NO safety outputs, and 1 solid state diagnostic output with complete status information. · · The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILC L 3 conforming to IEC 62061, and SIL 3 conforming to IEC 61508. · · This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). · · This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). · · This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. · · This safe relay conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TÜV, EAC, CCC and KC marking. · · Harmony safety relays are compatible with Modicon logic controllers.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: XPSUAF13AC Categories: , , Brand: Part Number: 2501537463

Description

Technical Specifications  Technical Specifications Device for monitoring of safety-related circuits Depth 120.00 mm Number of outputs, safety related, delayed, semiconductors 0.00 Height 100.00 mm Width 22.50 mm Number of outputs, signalling function, delayed, with contact 0.00 Number of outputs, signalling function, undelayed, semiconductors 0.00 Number of outputs, signalling function, delayed, semiconductors 0.00 Number of outputs, safety related, undelayed, with contact 3.00 Number of outputs, safety related, undelayed, semiconductors 0.00 Number of outputs, safety related, delayed, with contact 0.00 Number of outputs, signalling function, undelayed, with contact 0.00 Release-delay 0.00 – 0.00 s Rail mounting possible Yes With start input Yes With approval for BG BIA No With detachable clamps Yes With approval according to UL Yes Rated control supply voltage at DC 24.00 – 24.00 V Rated control supply voltage at AC 60 Hz 24.00 – 24.00 V Rated control supply voltage at AC 50 Hz 24.00 – 24.00 V With approval for TÜV Yes With muting function No With feedback circuit Yes Suitable for monitoring of position switches Yes Suitable for monitoring of valves No Suitable for monitoring of tactile sensors No Suitable for monitoring of optoelectronic protection equipment Yes Suitable for monitoring of emergency-stop circuits Yes Suitable for monitoring of proximity switches Yes Suitable for monitoring of magnetic switches Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2192651 · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2222745
