Preventa Rfid Safety Switch Telemecanique Safety Switches Xcs Contactless Daisy Chain Model Unique Pairing

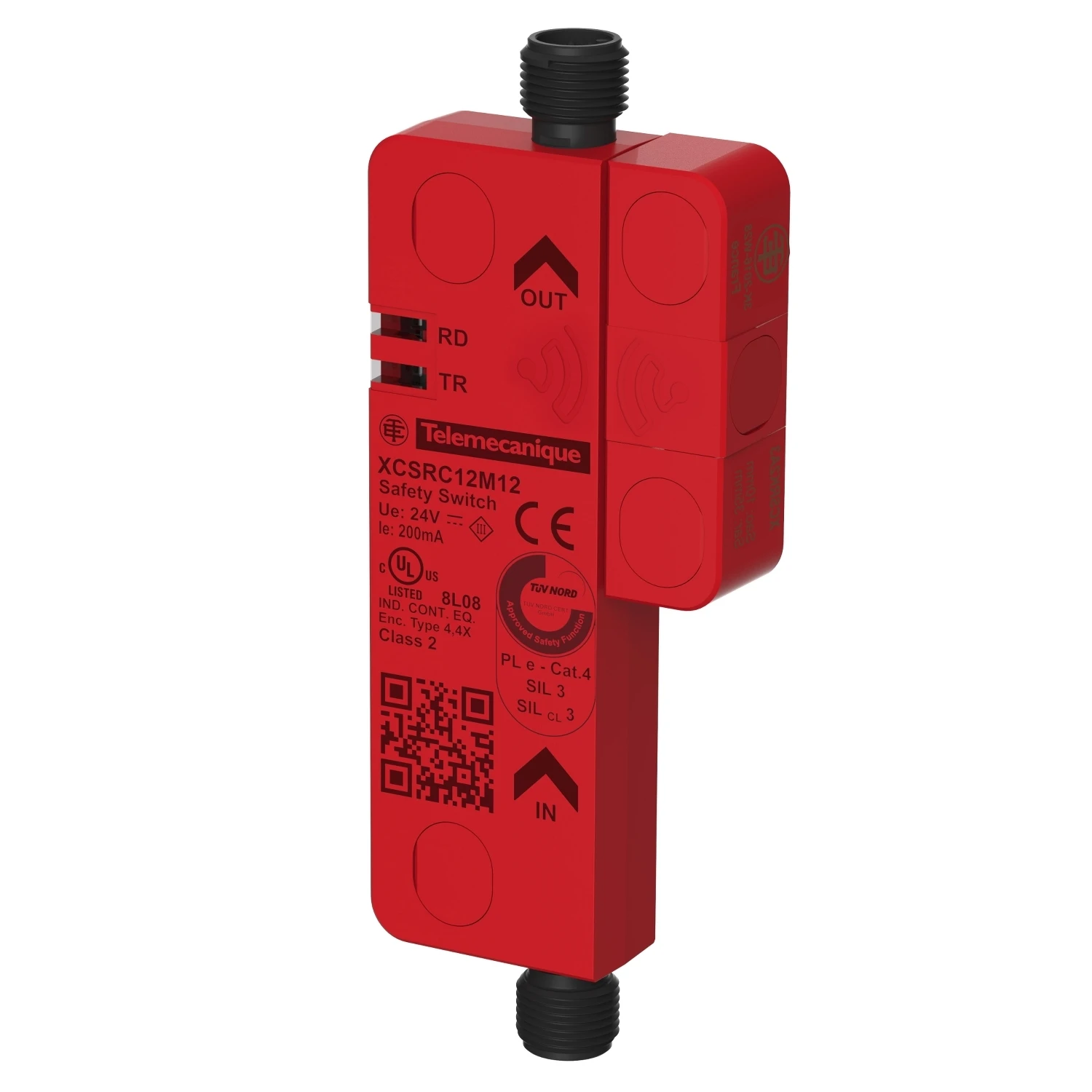

This XCSRC RFID Contactless Safety Switch is designed for use as a safety interlock switch for guard door or protective casings monitoring and position detection on machines with low inertia. It has 2 NO Solid State PNP safety outputs (OSSDs). It is a daisy-chain model with a unique pairing. Daisy-chain models have 2 integrated M12 connectors for direct series cabling. It has a high level of coding (unique code) according to EN/ISO 14119. Its integral LEDs offer a local Signaling, allowing it to clearly display the status of the device. No need for T or Y connectors. Series diagnosis is available thru a diagnostic module. Possible connection to a simple safety relay. Its PFHD reliability data is 5 x 10?¹°. It has a plastic body with M12 connectors x 2. Its IP65 / IP66 / IP67 / IP69K degree of protection and ECOLAB compatibility makes it ideal for heavy duty use in harsh conditions and hygiene environments. It also complies with EN/ISO 14119, EN/IEC 60947-5-2, EN/IEC 60947-5-3 standards. In Standalone operation or when associated and correctly connected to an appropriate safety control unit, it conforms to category 4, performance level PL e, SIL 3 as described in EN/ISO 13849-1, EN/IEC 61508. · · · Electrical connection 2 male connectors · · Connector type M12 male · · Type of output stage Solid-state, PNP · · Maximum switching voltage 26.4 V DC · · Its integral LEDs offer a local Signaling, allowing it to clearly display the status of the device. No need for T or Y connectors. Series diagnosis is available thru a diagnostic module. Possible connection to a simple safety relay. · · 35 mm rail (EN 60715) mount · · “Blade + cross”: Both flat blade and cross-head screwdrivers can be used to adjust the range and function selectors, the timing trimmer, and to disengage the 35 mm rail clip · · Compliant with EN 45545-2: 2013 (protection against fire and fumes) · · Compliant with EN 61373 (resistance to shock and vibration, category 1, class B) · · Compliant WithEN 50155 (resistance to temperature and humidity, class T1)
