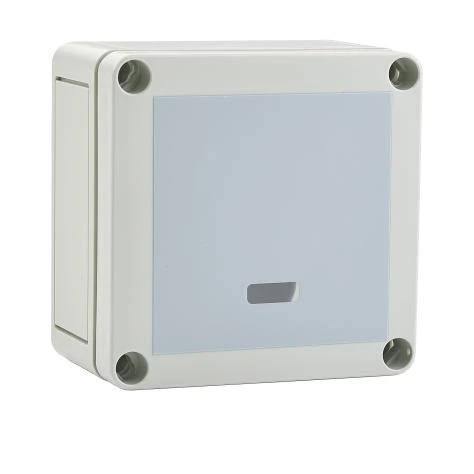

CP Electronics PRM Switching Rugged IP66 Wall Surface Mounted Microwave Presence Detector

CP Electronics PRM Switching Rugged IP66 Wall Surface Mounted Microwave Presence Detector

£326.70 Incl. VAT

CP Moisture-Proof Microwave Presence Detector features with rugged, ceiling mount and PRM switching. This product is low profile, contemporary styled microwave provides automatic control of lighting, heating or ventilation loads, via highly sensitive microwave technology. Low power microwave signals are emitted and then measure the reflections as the signals bounce of moving objects. It is optimised for ceiling mounting applications where long-distance detection is required. Low voltage and volt free options, suitable for BMS and other control applications. Easily setup using the UHS5 infrared handset, no need to remove unit to re-program. Suitable for heating and ventilation applications. · · · Switching with lux level sensing · · Programmable via our programming handset · · Absence detection functionality · · PRM Switching · · Robust design, vandal resistant

In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: MWS1A-IP-PRM Categories: , , Brand: Product Code: 2500439824

Description

Technical Specifications  Technical Specifications Motion detector Material Plastic Material qualifier Thermoplastic Mounting method Surface mounted Colour White Model Presence detector Degree of protection (IP rating) IP66 Voltage type AC Height 110 mm Width 110 mm Switching-on delay 10 s Depth 63 mm Max. duty cycle 99 min Max. starting current 10 A Frequency 50 – 50 Hz · Technical Data Sheet – Click to Download
