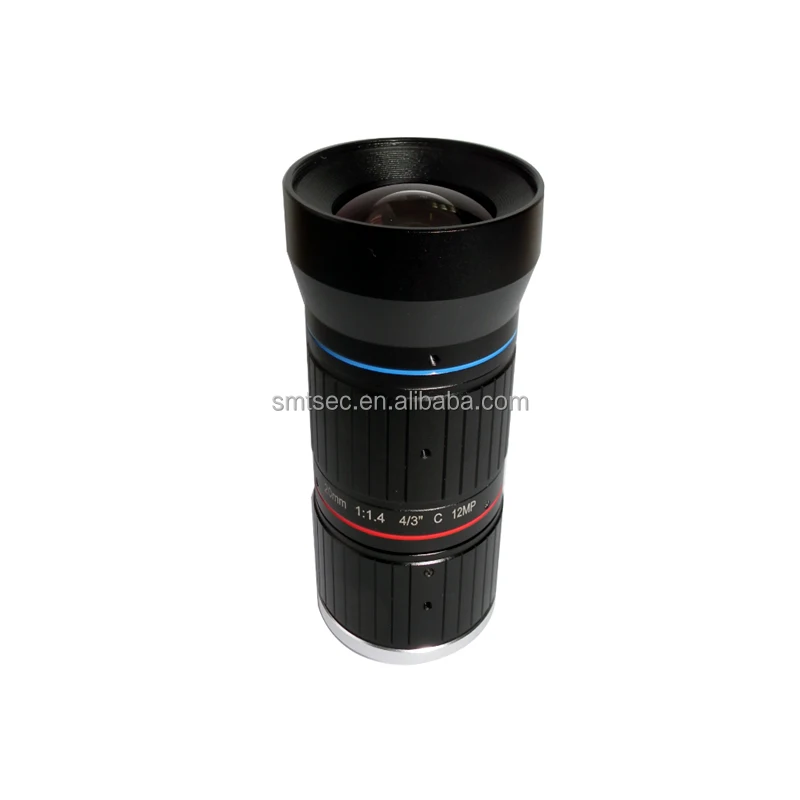

Professional 12MP 20mm F1.4 C-Mount Lens, 4K Low Distortion ITS/CCTV Lens for Machine Vision & Industrial Camera

Description

Product description

CCTV Lens 12MP 20mm C-Mount Machine Vision ITS Lens Low Distortion F1.4 4K CCTV Lens for Network Security Industrial Camera Model:SL-0334 Product Description Custom Sensor Selection In all fields, a high level of technology is required, requiring high resolution, and low power consumption. Our well-trained R&D team would provide satisfying camera modules pro type and great support according to your application, from design to manufacturing, we offer a one-stop service so u could focus on what you are good at. Resolution 2MP，4MP，5MP，8MP，12MP Sensor GC2053，GC2063，IMX307，IMX327，GC4653，IMX335，IMX347，IMX385，IMX485，IMX412，IMX226，IMX178 Size 1/1.2″，1/1.8″，1/2.3″，1/2.8″，1/2.9″，1/3″ Frame Frequency 20fps，25fps，30fps，50fps，60fps，90fps，120fps DSP model GK7205V200，GK7205V300，GK7605V100，Hi3516CV500，Hi3516DV300，HI3516AV300，HI3519AV100，SD3403，SD3402，Hi3516CV300，Hi3516DV100，HI3516AV100，HI3519AV101 Lenses / Custom Filter/FoV Options From the field of view, it could be divided into ordinary lenses (about 50 degrees to 70 degrees), wide-angle lenses,ultra-wide-angle lenses and fisheye lenses. The field of view of the wide-angle lens is generally around 80°, which is mainly used for shooting general scenes. The ultra-wide-angle lens is used for shooting scenes such as landscapes, buildings, and group photos. The fisheye lens is an extreme wide-angle lens and the view angle even reaches 180°, the diameter of the lens is very short and protrudes outward, similar to the eyes of fish, and is widely used in the fields of scene monitoring, robot navigation and measurement. According to your FOV request, flexibly match the most suitable lens, a wide selection of view angles such as : Diagonal (°) Vertical (°) Horizontal (°) 180 180 180 170 161.1 166 120.0 90 111.1 115.2 81.2 102 107.1 73.9 95.1 90.5 61.9 82.4 80.1 53.1 73.7 63.4 37.8 54.4 46.8 27 39.6 34.4 19.5 28.8 Related Products Similar Items SL-0330 12MP 1″ MV Lens 12mm F1.4 C Mount for 1″ Network IP Security Camera.
