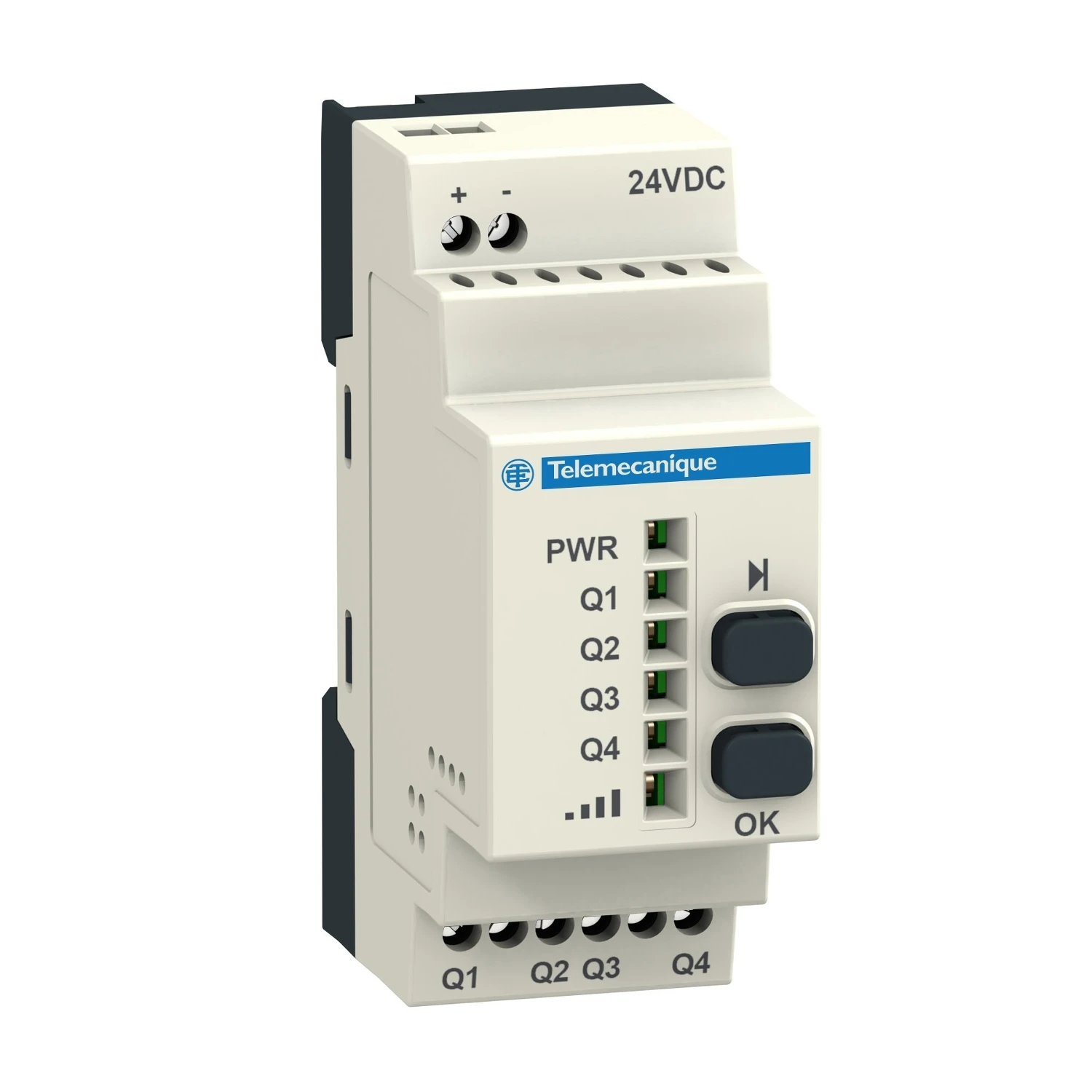

Programmable receiver, 4 PNP, 200mA, 24 V DC, 2 pusbuttons, 6 LEDs

Programmable receiver, 4 PNP, 200mA, 24 V DC, 2 pusbuttons, 6 LEDs. product or component type: programmable receiver – device application: interface to PLC. · · · This product is part of the XC Standard range, an offer of limit switches. · · This programmable receiver is equipped with 2 buttons and 6 LED indicators (power ON, reception signal and output active). · · Neighbour Immunity, selectable up to 3 sensors · · It has 4 PNP output contacts and has 2.4GHz ZigBee green power communication port protocol. It is available with 1A fuse type fast blow short-circuit protection. · · It is a programmable receiver with nominal output current of 0.8A at 24V DC, maximum switching current of 200mA DC, rated supply voltage of 24V DC and maximum power consumption of 26W DC. Receiver unit has 2 channels per receiver. · · Timer functions can be set, such as ON-delay, Offdelay, and one shots
