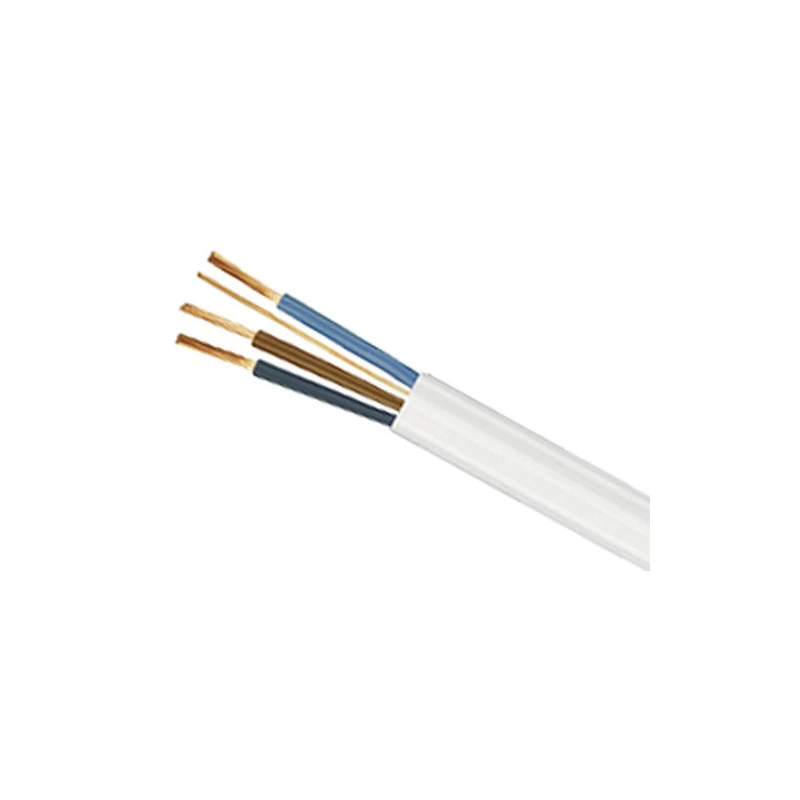

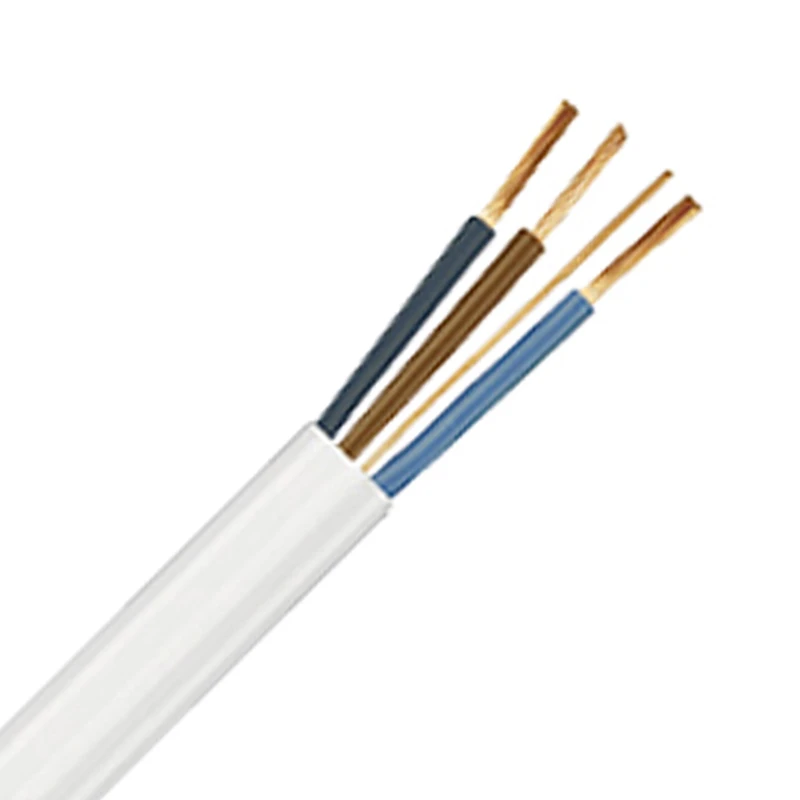

Prysmian 6243BH 2.5mm² White Basec Cable 3-Core&Earth
£2.82 Incl. VAT
Draka Saffire 6243B is a flat triple core OHLS® cable designed for installation as clipped direct, on tray or in basket and also buried within plaster or embedded in walls. Three cores with bare CPC · · · Suitable for fixed installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster. · · Suitable for situations in which low emission smoke and acid gas is required in case of burning. · · Length in metres: 100 · · No. of cores: 3 · · Product Packaging: Reel · · Low Smoke Zero Halogen · · Standard: BS7211
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Conductor material Copper Core identification Colour Conductor surface Bare Core colour Several Conductor category Class 1 = solid Sheath colour Grey Protective barrier None Sheath material Polyvinyl chloride (PVC) Core insulation material Polyvinyl chloride (PVC) Max. conductor temperature 70 °C Number of cores 3 Nominal cross sectional area of conductor 1 mm² Conductor Diameter 2.5 mm Nominal voltage U 500 V Nominal voltage U0 300 V Permitted cable outer temperature during assembling/handling 0 – 60 °C Oil resistant according to IEC 60811-404 No Drain wire Yes Low temperature resistant according to EN 60811-504+505+506 No Screen No · Technical Data Sheet – Click to Download
