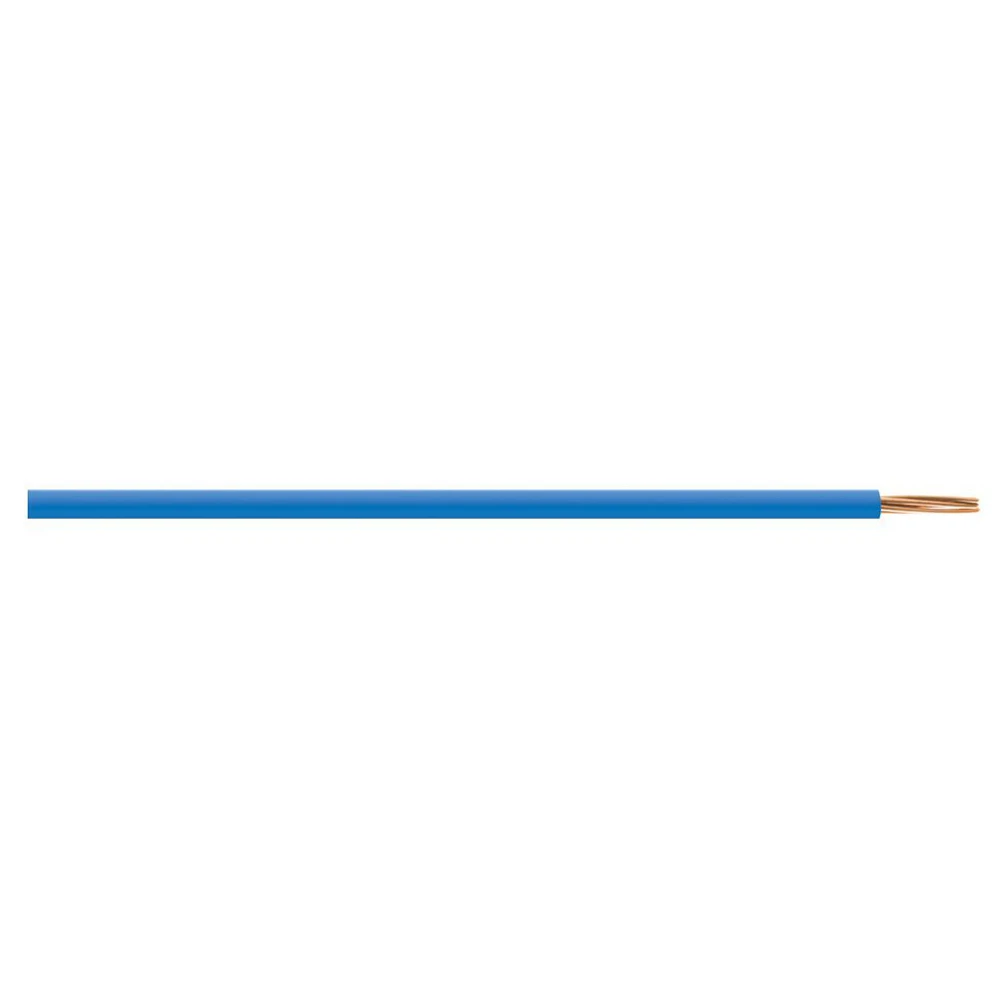

Prysmian 6491B 6.0mm² Blue Basec Cable 1-Core
£166.98 Incl. VAT
Prysmian 6491B is a single core, low voltage Low Smoke, Zero Halogen (LSOH®) wiring cable designed for installation within conduit, trunking or inside fixed protected environments · · · Installation in surface mounted or embedded conduits, or similar closed systems and for fixed protected installation. · · Particularly used in situations where low emissions of smoke and acid gas is required in case of burning. · · Green/Yellow for use as earth can be installed without mechanical protection. · · No. of cores: 1 · · Product Packaging: Reel · · Low Smoke Zero Halogen · · Standard: BS EN 50525-3-41
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Core colour Blue Sheath colour Brown Core identification Colour Conductor material Copper Conductor surface Bare Conductor category Class 2 = stranded Reaction-to-fire according to EN 13501-6: Class None Nominal cross sectional area of conductor 6 mm² Number of cores 1 Conductor Diameter 6 mm Nominal voltage U 750 V Outer diameter approx. 4.8 mm Nominal voltage U0 450 V Max. conductor temperature 90 °C Permitted cable outer temperature during assembling/handling 0 – 80 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download
