Prysmian 6491X 10.0mm² Blue PVC Basec Cable 1-Core 100m Roll
Prysmian 6491X 10.0mm² Blue PVC Basec Cable 1-Core 100m Roll
Prysmian 6491X 10.0mm² Blue PVC Basec Cable 1-Core 100m Roll - Image 2

Prysmian 6491X 10.0mm² Blue PVC Basec Cable 1-Core 100m Roll

Pack of 100

£298.08 Incl. VAT

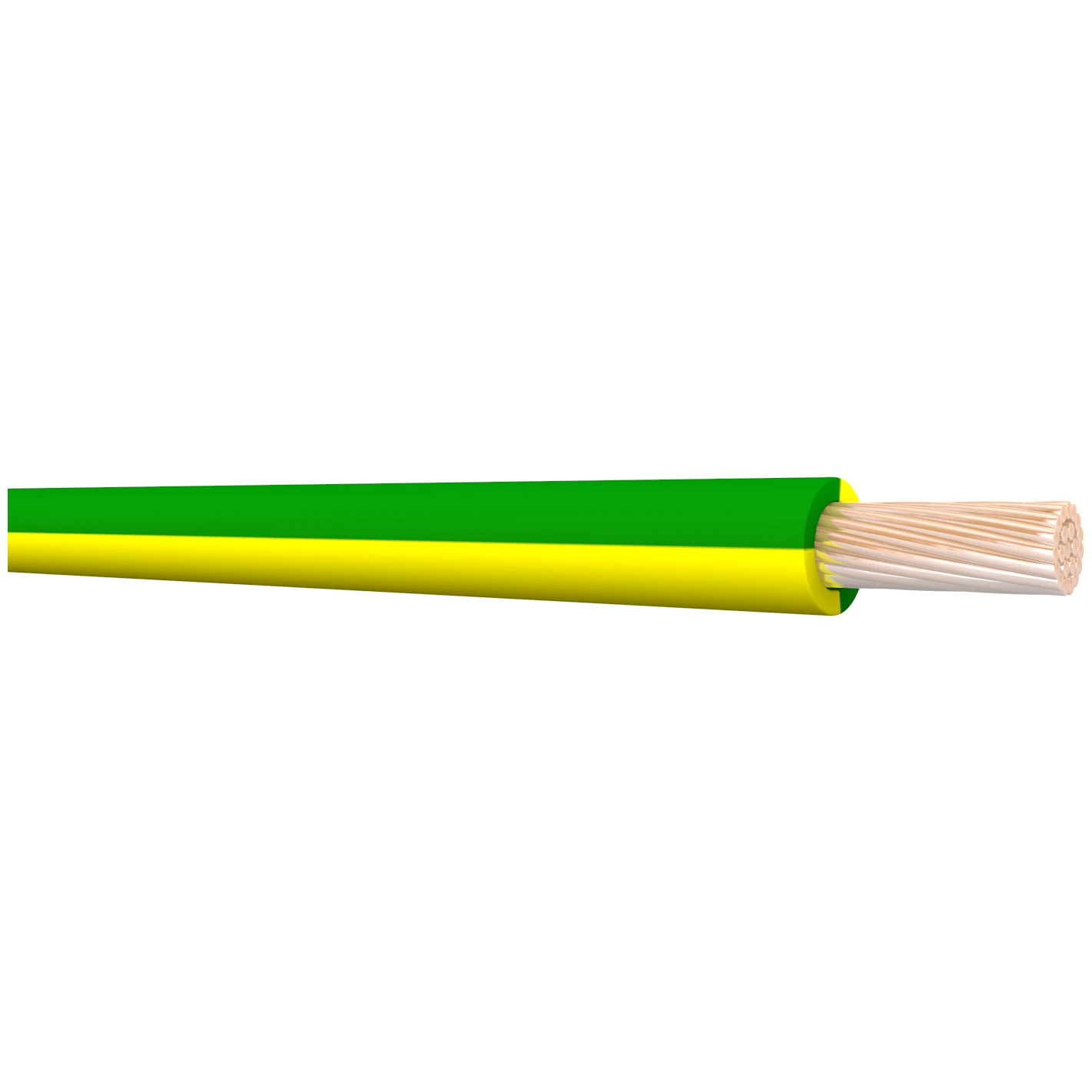

Prysmian 6491X is a single core, low voltage wiring cable designed for installation within conduit, trunking or inside fixed protected environments · · · Installation in surface mounted or embedded conduits, or similar closed systems and for fixed protected installation · · Green/Yellow for use as earth can be installed without mechanical protection. · · Length in metres: 100 · · No. of cores: 1 · · Product Packaging: Reel · · Material: PVC · · Standard: BS EN 50525-2-31

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20147003 Categories: , , , Brand: Product Code: 2500019586

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Core colour Blue Sheath colour Blue Core identification Colour Conductor material Copper Conductor surface Bare Conductor category Class 2 = stranded Core insulation material Polyvinyl chloride (PVC) Nominal voltage U0 450 V Max. conductor temperature 70 °C Min. permitted bending radius, stationary application/permanent installation 38 mm Number of cores 1 Outer diameter approx. 6.3 mm Conductor Diameter 10 mm Nominal voltage U 750 V Nominal cross sectional area of conductor 10 mm² Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
