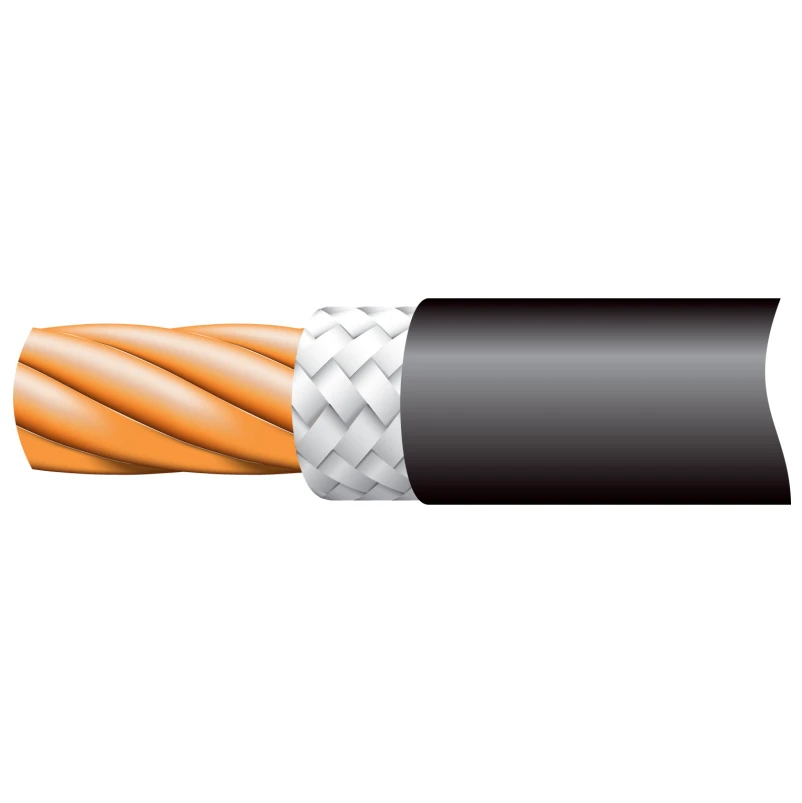

Prysmian FP100 1.5mm² Black Fire Performance Singles Cable 1-Core 100m Reel
Prysmian FP100 1.5mm² Black Fire Performance Singles Cable 1-Core 100m Reel
Prysmian FP100 1.5mm² Black Fire Performance Singles Cable 1-Core 100m Reel - Image 2

Prysmian FP100 1.5mm² Black Fire Performance Singles Cable 1-Core 100m Reel

£5.77 Incl. VAT

Prysmian FP100 is the original fire resistant low voltage single core cable for use in steel conduits · · · Ideally suited to drawing into conduit installations that provide adequate mechanical protection. · · Forms the key part of a wiring system for evacuation and fire fighting applications also suitable as a separate CPC.

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20146200 Categories: , , Brand: Product Code: 2500042677

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor material Copper Core colour Black Core identification Colour Conductor surface Bare Conductor category Class 2 = stranded Core insulation material Polyolefin Nominal cross sectional area of conductor 1.5 mm² Max. conductor temperature 90 °C Outer diameter approx. 3.9 mm Nominal voltage U0 450 V Nominal voltage U 750 V Permitted cable outer temperature during assembling/handling 0 – 80 °C Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No · Technical Data Sheet – Click to Download
