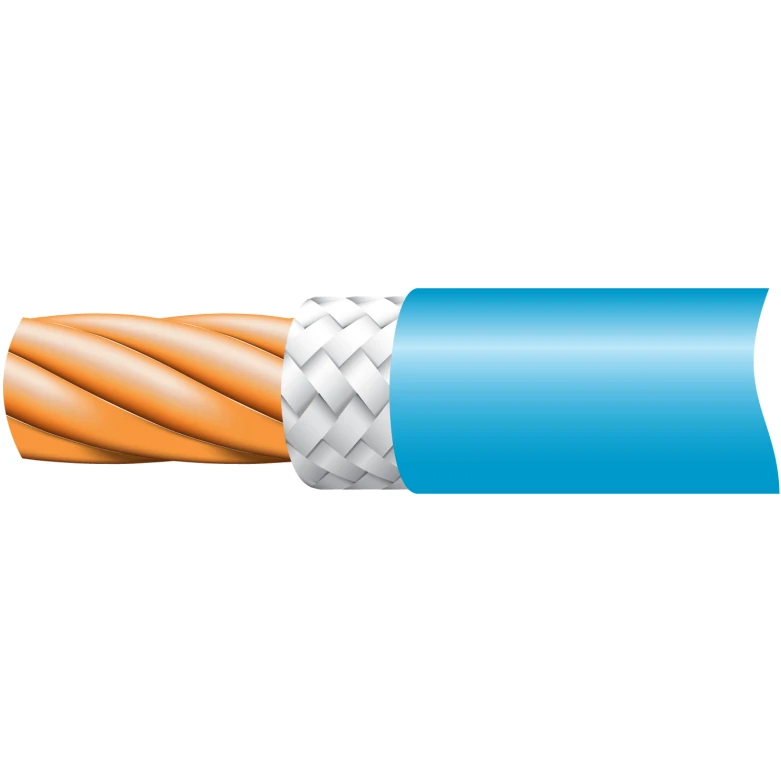

Prysmian FP100 1.5mm² Blue Fire Performance Singles Cable 1-Core 100m Reel
£5.77 Incl. VAT
Prysmian FP100 is the original fire resistant low voltage single core cable for use in steel conduits · · · Ideally suited to drawing into conduit installations that provide adequate mechanical protection. · · Forms the key part of a wiring system for evacuation and fire fighting applications also suitable as a separate CPC.
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Core colour Blue Conductor material Copper Core identification Colour Conductor surface Bare Core insulation material Polyolefin Max. conductor temperature 90 °C Conductor category Class 2 = stranded Outer diameter approx. 3.9 mm Nominal cross sectional area of conductor 1.5 mm² Nominal voltage U 750 V Nominal voltage U0 450 V Permitted cable outer temperature during assembling/handling 0 – 80 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No · Technical Data Sheet – Click to Download
