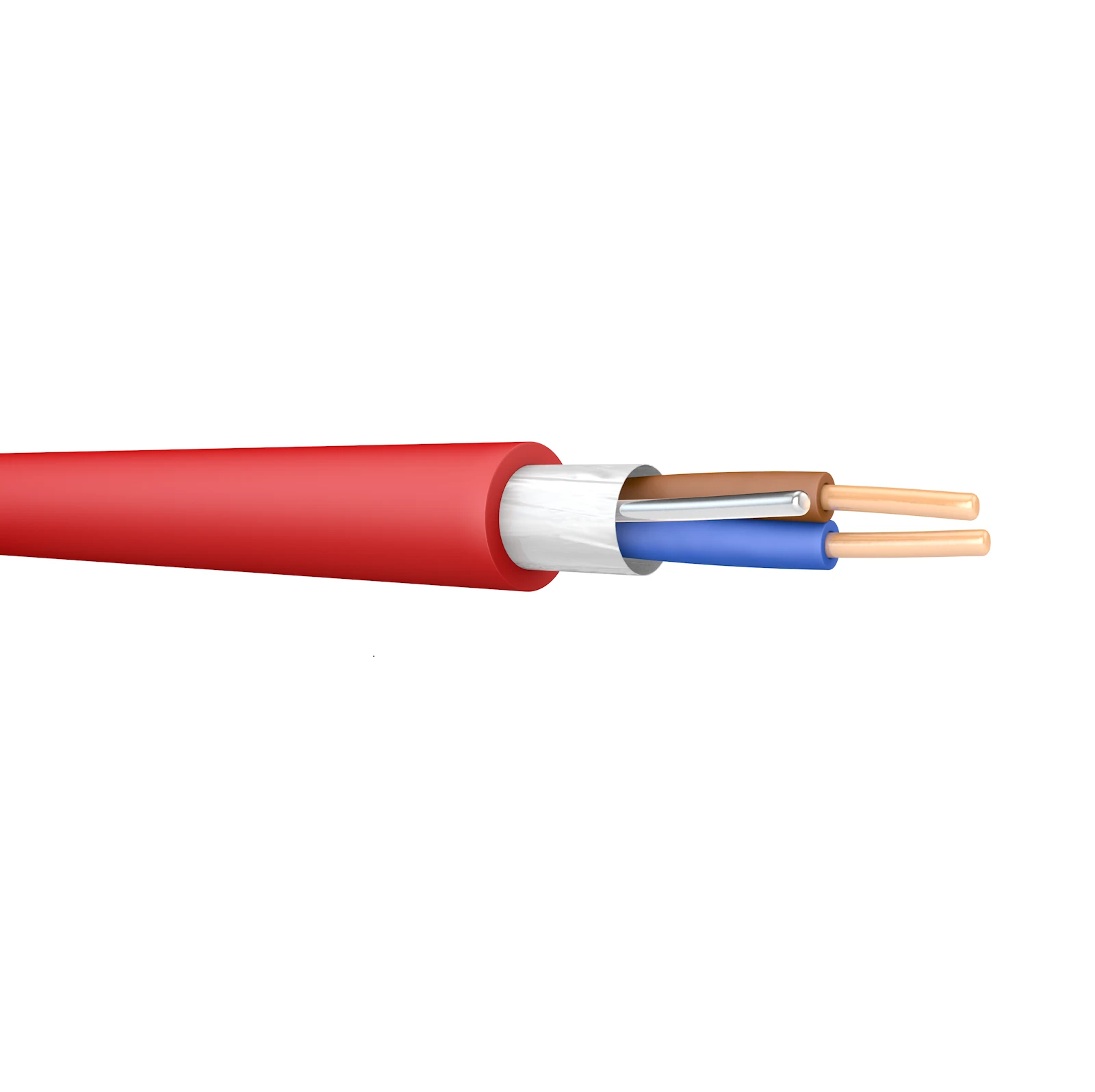

Prysmian FP200G3C 4.0mm² Red Fire Performance Soft Skin Standard Cable 3-Core 500m Reel
Prysmian FP200G3C 4.0mm² Red Fire Performance Soft Skin Standard Cable 3-Core 500m Reel
Prysmian FP200G3C 4.0mm² Red Fire Performance Soft Skin Standard Cable 3-Core 500m Reel - Image 2
Prysmian FP200G3C 4.0mm² Red Fire Performance Soft Skin Standard Cable 3-Core 500m Reel - Image 3

Prysmian FP200G3C 4.0mm² Red Fire Performance Soft Skin Standard Cable 3-Core 500m Reel

Pack of 500

£24,750.00 Incl. VAT

FP200 Gold Prysmian 4.0mm 3C 500M Red Fire Performance Softskin · · · Cable Size: 4.0mm · · Colour: Red · · Length in metres: 500 · · No. of cores: 3 · · Product Packaging: Reel · · Low Smoke Zero Halogen

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20145473 Categories: , , Brand: Product Code: 1050286282

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor material Copper Core identification Colour Conductor surface Bare Core insulation material Polyolefin Sheath material Polyolefin Sheath colour Red Conductor category Class 2 = stranded Core colour Several Protective barrier None Nominal cross sectional area of conductor 4 mm² Max. conductor temperature 70 °C Outer diameter approx. 12.3 mm Number of cores 3 Nominal voltage U0 300 V Nominal voltage U 500 V Permitted cable outer temperature during assembling/handling 0 – 60 °C Drain wire Yes Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen Yes · Technical Data Sheet – Click to Download
