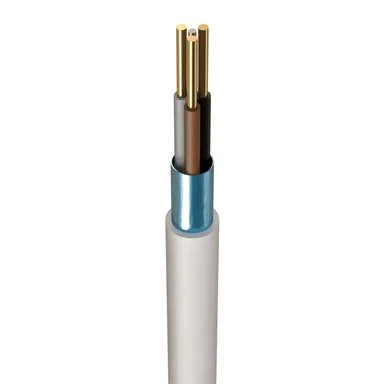

Prysmian FP200G3C 4.0mm² White Fire Performance Soft Skin Standard Cable 3-Core 50m Reel
£2,574.00 Incl. VAT
FP200 Gold Prysmian 4.0mm 3C 50M White Fire Performance Softskin · · · Cable Size: 4.0mm · · Colour: White · · Length in metres: 50 · · No. of cores: 3 · · Product Packaging: Reel · · Low Smoke Zero Halogen
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Sheath colour White Conductor material Copper Core identification Colour Core insulation material Polyolefin Sheath material Polyolefin Conductor surface Bare Conductor category Class 2 = stranded Protective barrier None Core colour Several Nominal cross sectional area of conductor 4 mm² Outer diameter approx. 12.3 mm Nominal voltage U 500 V Number of cores 3 Nominal voltage U0 300 V Max. conductor temperature 70 °C Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No Screen Yes Drain wire Yes
