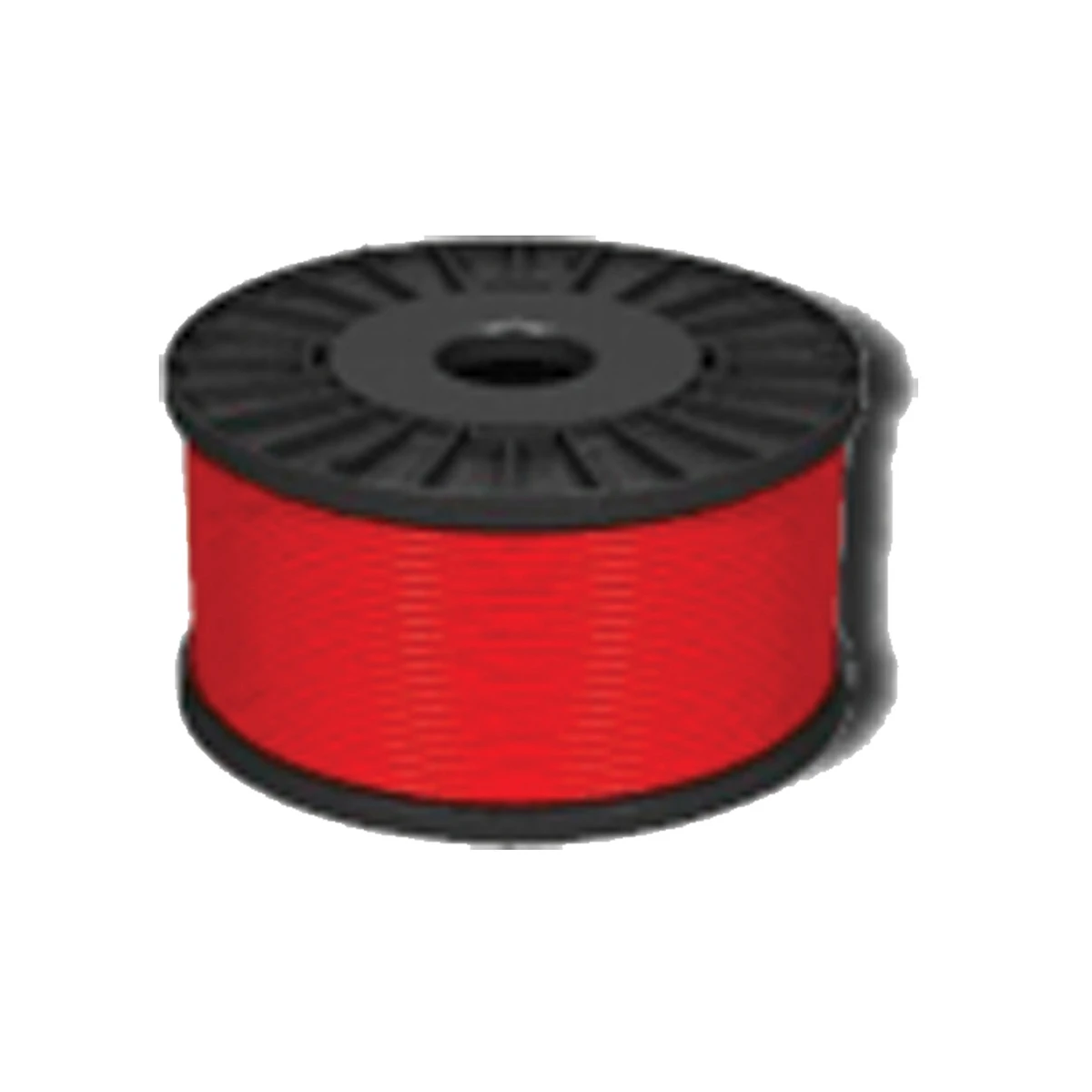

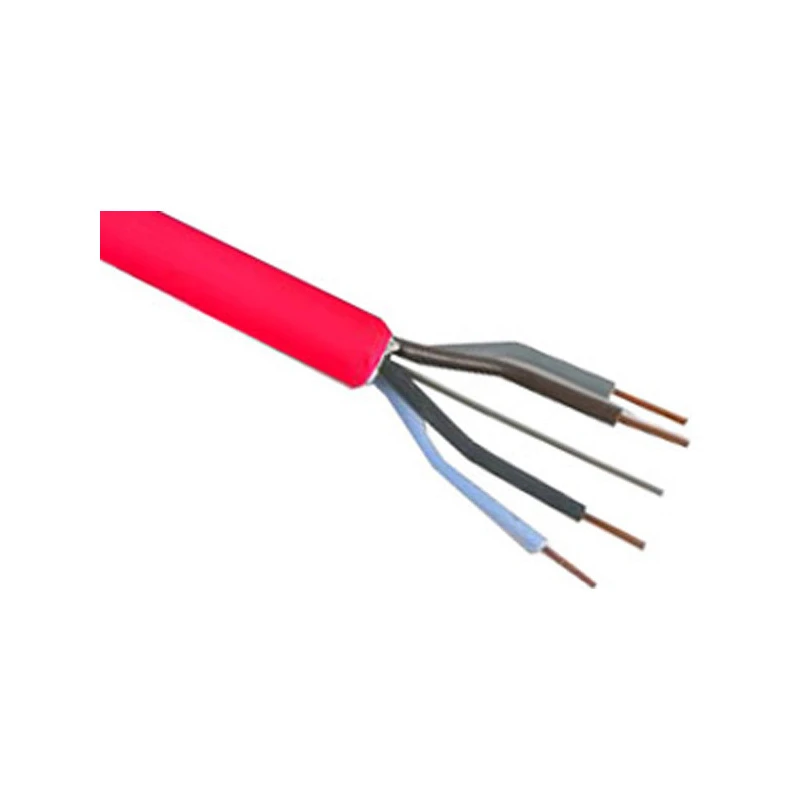

Prysmian FP200G4C 1.5mm² Red Fire Performance Soft Skin Standard Cable 4-Core
Prysmian FP200G4C 1.5mm² Red Fire Performance Soft Skin Standard Cable 4-Core
Prysmian FP200G4C 1.5mm² Red Fire Performance Soft Skin Standard Cable 4-Core - Image 2
Prysmian FP200G4C 1.5mm² Red Fire Performance Soft Skin Standard Cable 4-Core - Image 3
Prysmian FP200G4C 1.5mm² Red Fire Performance Soft Skin Standard Cable 4-Core - Image 4

Prysmian FP200G4C 1.5mm² Red Fire Performance Soft Skin Standard Cable 4-Core

Pack of 200

£745.20 Incl. VAT

Prysmian FP200 GOLD is a ‘Standard’ fire resistant cable as defined by fire alarm and emergency lighting British Standards · · · Fire detection and fire alarm systems for buildings. · · Voice alarm systems and emergency voice communication. · · Emergency and escape lighting. · · Control circuits for life safety and fire fighting systems. · · Other essential service control circuits for “Standard” fire resistance. · · Diameter: 8.1mm · · Number of Cores: 2 Core · · Operating Temperature: -20 to 70°C

Out of Stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 20145570 Categories: , , , Brand: Product Code: 1052025474

Description

Technical Specifications  Technical Specifications Power cable < 1 kV, for fixed installations Conductor material Copper Core identification Colour Conductor surface Bare Sheath material Polyolefin Core insulation material Polyolefin Conductor category Class 1 = solid Sheath colour Red Core colour Several Protective barrier None Nominal cross sectional area of conductor 1.5 mm² Outer diameter approx. 10 mm Nominal voltage U 500 V Number of cores 4 Nominal voltage U0 300 V Max. conductor temperature 70 °C Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No Screen Yes Drain wire Yes · Technical Data Sheet – Click to Download
