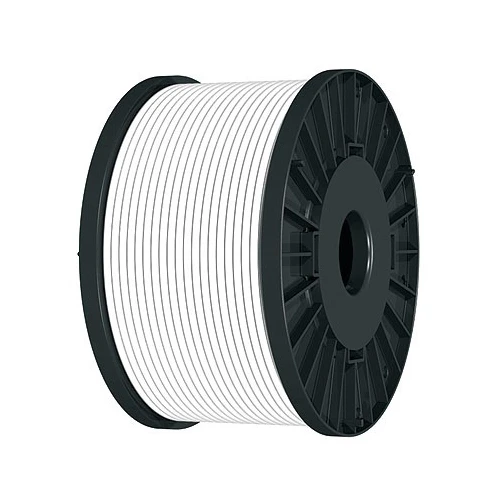

Prysmian FP200G4C 1.5mm² White Fire Performance Soft Skin Standard Cable 4-Core
£745.20 Incl. VAT
Prysmian FP200 GOLD is a ‘Standard’ fire resistant cable as defined by fire alarm and emergency lighting British Standards · · · Fire detection and fire alarm systems for buildings. · · Voice alarm systems and emergency voice communication. · · Emergency and escape lighting. · · Control circuits for life safety and fire fighting systems. · · Other essential service control circuits for “Standard” fire resistance.
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Sheath colour White Conductor material Copper Conductor surface Bare Core identification Colour Sheath material Polyolefin Conductor category Class 1 = solid Core insulation material Polyolefin Core colour Several Protective barrier None Outer diameter approx. 10 mm Nominal cross sectional area of conductor 1.5 mm² Nominal voltage U 500 V Number of cores 4 Nominal voltage U0 300 V Max. conductor temperature 70 °C Permitted cable outer temperature during assembling/handling 0 – 60 °C Drain wire Yes Oil resistant according to IEC 60811-404 No Low temperature resistant according to EN 60811-504+505+506 No Screen Yes · Technical Data Sheet – Click to Download
