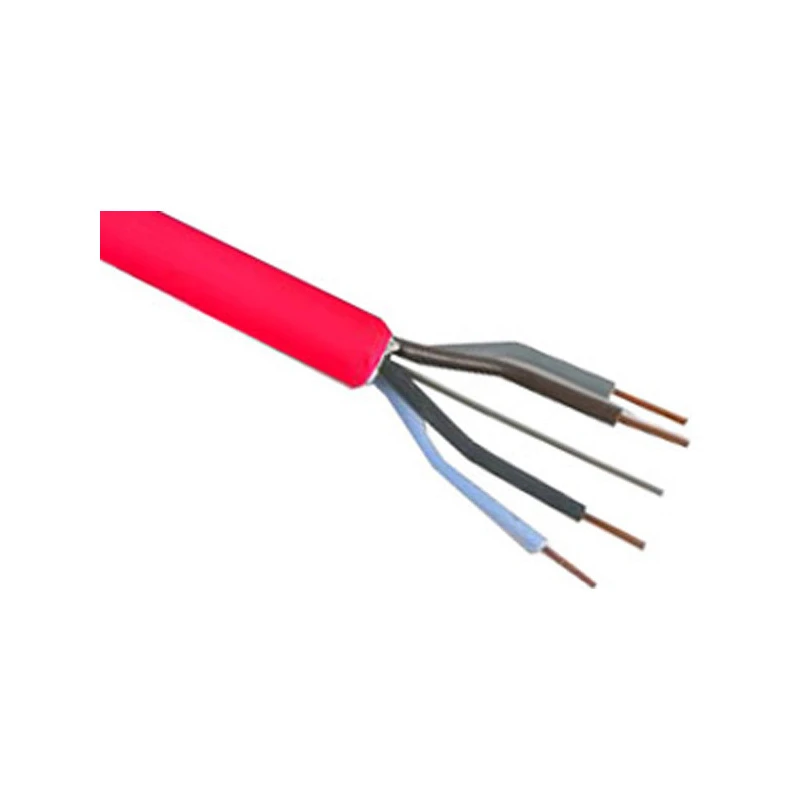

Prysmian FP200G4C 4.0mm² Red Fire Performance Soft Skin Standard Cable 4-Core
£1,335.84 Incl. VAT
Prysmian FP200 GOLD is a ‘Standard’ fire resistant cable as defined by fire alarm and emergency lighting British Standards · · · Fire detection and fire alarm systems for buildings. · · Voice alarm systems and emergency voice communication. · · Emergency and escape lighting. · · Control circuits for life safety and fire fighting systems. · · Other essential service control circuits for “Standard” fire resistance.
Description
Technical Specifications Technical Specifications Power cable < 1 kV, for fixed installations Sheath colour White Conductor material Copper Core identification Colour Conductor surface Bare Sheath material Polyolefin Conductor category Class 2 = stranded Core insulation material Polyolefin Core colour Several Protective barrier None Max. conductor temperature 70 °C Outer diameter approx. 13.5 mm Number of cores 4 Nominal voltage U0 300 V Nominal cross sectional area of conductor 4 mm² Nominal voltage U 500 V Permitted cable outer temperature during assembling/handling 0 – 60 °C Low temperature resistant according to EN 60811-504+505+506 No Oil resistant according to IEC 60811-404 No Screen Yes Drain wire Yes · Technical Data Sheet – Click to Download
