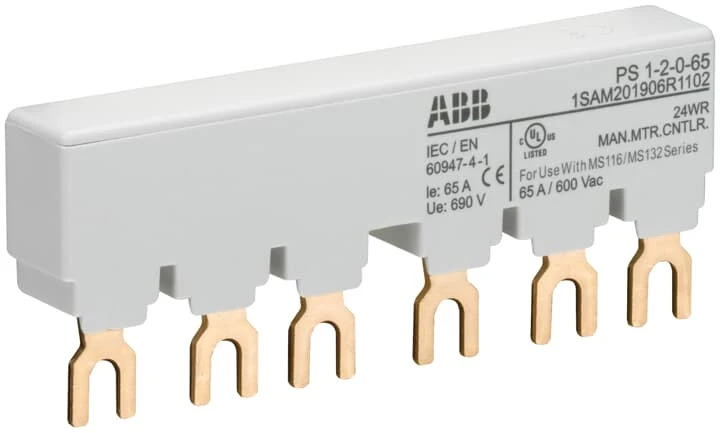

PS1-2-0-65 Busbar

Description

Technical Specifications  Technical Specifications Phase busbar Number of poles 3 Number of phases 3 Max. rated operation voltage Ue 690 V Module width 14 mm Suitable for number of devices 2 Width in number of modular spacings 4.94 Rated short-time withstand current lcw 100 kA Rated surge voltage 6 kV Conditioned rated short-circuit current Iq 100 kA Rated permanent current Iu 65 A Length 86.5 mm Cross section 8 mm² Number of modular spacings 4.94 Insulated Yes Suitable for devices with N-busbar No Suitable for devices with auxiliary switch No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
