PS1-3-0-65 Busbar
PS1-3-0-65 Busbar
PS1-3-0-65 Busbar - Image 2
PS1-3-0-65 Busbar - Image 3
PS1-3-0-65 Busbar - Image 4

PS1-3-0-65 Busbar

£16.94 Incl. VAT

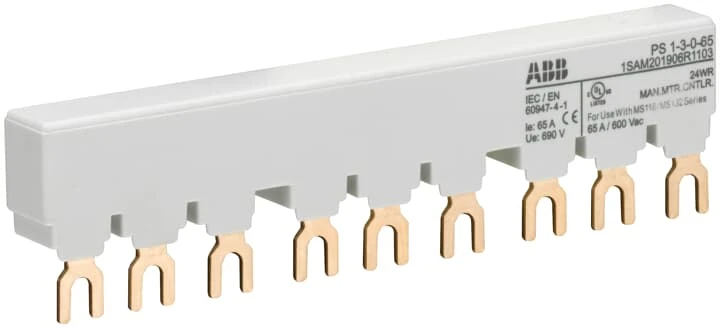

PS1-3-0-65 3-Phase Busbar For 3 MS116 / MS132, Ie=65A · · · Busbar · · 3 Phase Busbar – 65A · · Fits MS and MO 116 and 132

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 1SAM201906R1103 Categories: , , Brand: Part Number: 2501025022

Description

Technical Specifications  Technical Specifications Phase busbar Length 131.5 mm Cross section 8 mm² Number of phases 3 Rated permanent current Iu 65 A Conditioned rated short-circuit current Iq 100 kA Rated surge voltage 6 kV Number of poles 9 Max. rated operation voltage Ue 690 V Module width 14 mm Suitable for number of devices 3 Width in number of modular spacings 7.51 Number of modular spacings 7.51 Rated short-time withstand current lcw 100 kA Insulated Yes Suitable for devices with N-busbar No Suitable for devices with auxiliary switch No · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
