Push Button 22mm Round Metal Shiny Blue
Push Button 22mm Round Metal Shiny Blue
Push Button 22mm Round Metal Shiny Blue - Image 2
Push Button 22mm Round Metal Shiny Blue - Image 3

Push Button 22mm Round Metal Shiny Blue

£7.03 Incl. VAT

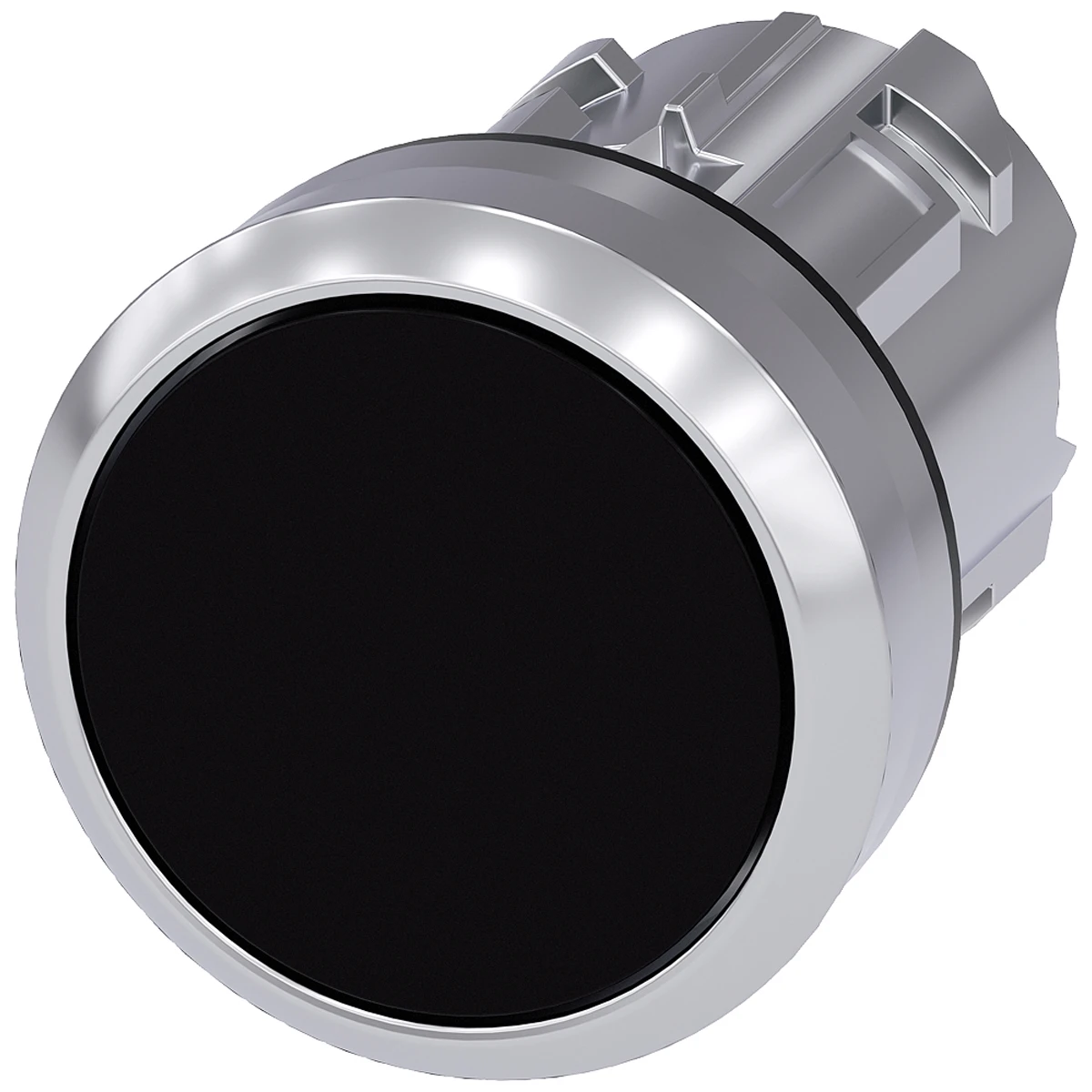

Siemens standard round pushbutton made up of a plastic actuator surrounded by a high gloss silver colour metal ring. The mounting diameter is 22.3mm whereas the actuating element has a 29.5mm diameter. · · · Manner of function: Momentary · · Type of unlocking device: None · · Mechanical sevice life: 10000000 cycles · · Maximum operating frequency: 3600 1/h · · IP66/67/69 Degree of protection · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Ambient temperature: -25 to 70°C

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3SU1050-0AB10-0AA0 Categories: , , Brand: Part Number: 1051118318

Description

Technical Specifications  Technical Specifications Front element for push button Colour button Black Construction type lens Round Material front ring Metal Type of button Flat Colour front ring Chrome Number of command positions 1 Hole diameter 22.3 mm Width opening 29.5 mm Height opening 11 mm Suitable for illumination No With protection cover No Labelled No Spring-return No Switching function latching No With front ring Yes With protective cover No · Technical Data Sheet – Click to Download
