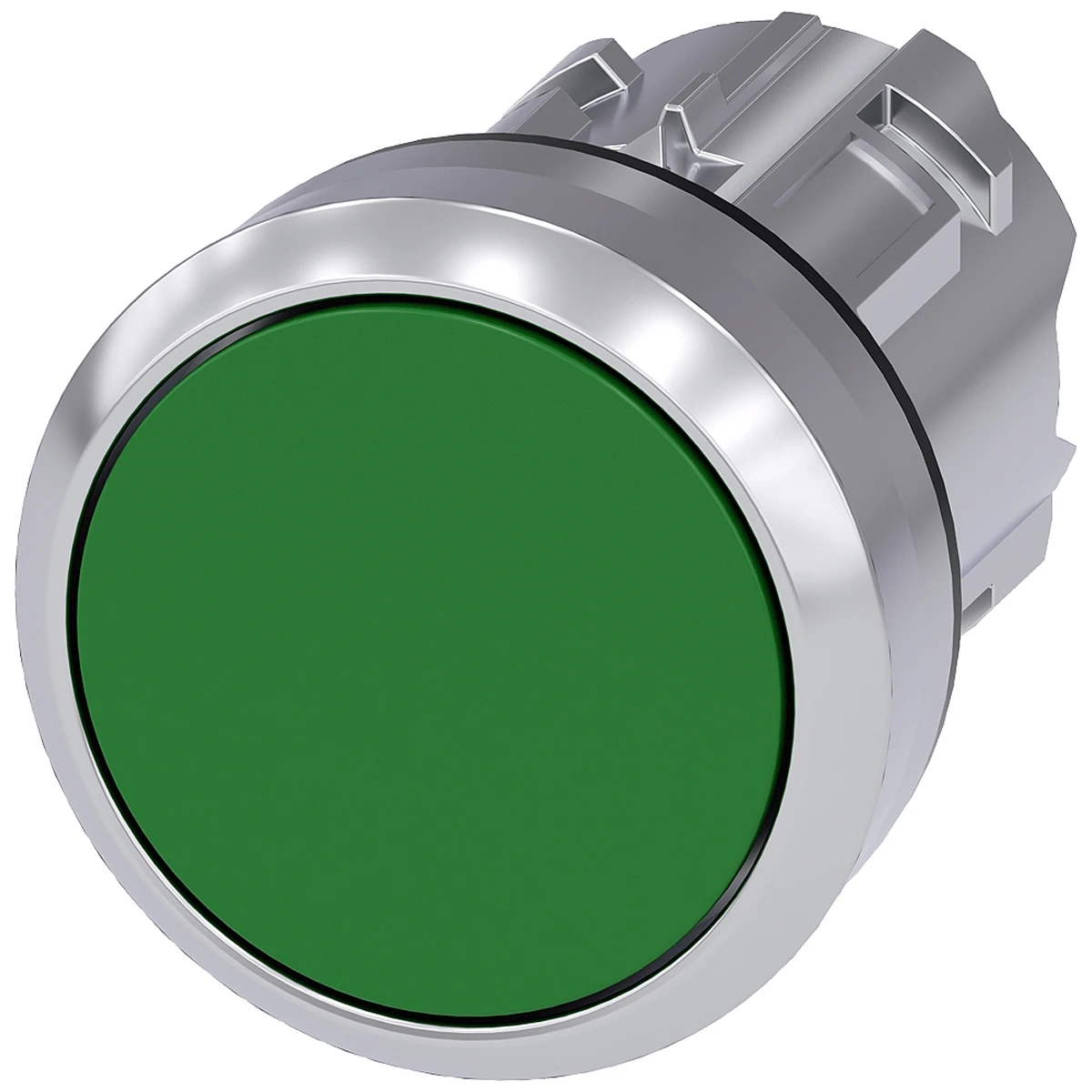

Siemens Push Button 22mm Round Metal Shiny Green
Siemens Push Button 22mm Round Metal Shiny Green
Siemens Push Button 22mm Round Metal Shiny Green - Image 2
Siemens Push Button 22mm Round Metal Shiny Green - Image 3

Siemens Push Button 22mm Round Metal Shiny Green

£7.30 Incl. VAT

Siemens standard round pushbutton made up of a plastic actuator surrounded by a high gloss silver colour metal ring. The mounting diameter is 22.3mm whereas the actuating element has a 29.5mm diameter. · · · Manner of function: Momentary · · Type of unlocking device: None · · Mechanical sevice life: 10000000 cycles · · Maximum operating frequency: 3600 1/h · · IP66/67/69 Degree of protection · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Ambient temperature: -25 to 70°C

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3SU1050-0AB40-0AA0 Categories: , , , Brand: Product Code: 1051118323

Description

Technical Specifications  Technical Specifications Front element for push button Colour button Green Construction type lens Round Material front ring Metal Type of button Flat Number of command positions 1 Hole diameter 22.3 mm Colour front ring Chrome Height opening 11 mm Width opening 29.5 mm With protective cover No Labelled No With front ring Yes Suitable for illumination No Spring-return No Switching function latching No · Technical Data Sheet – Click to Download
