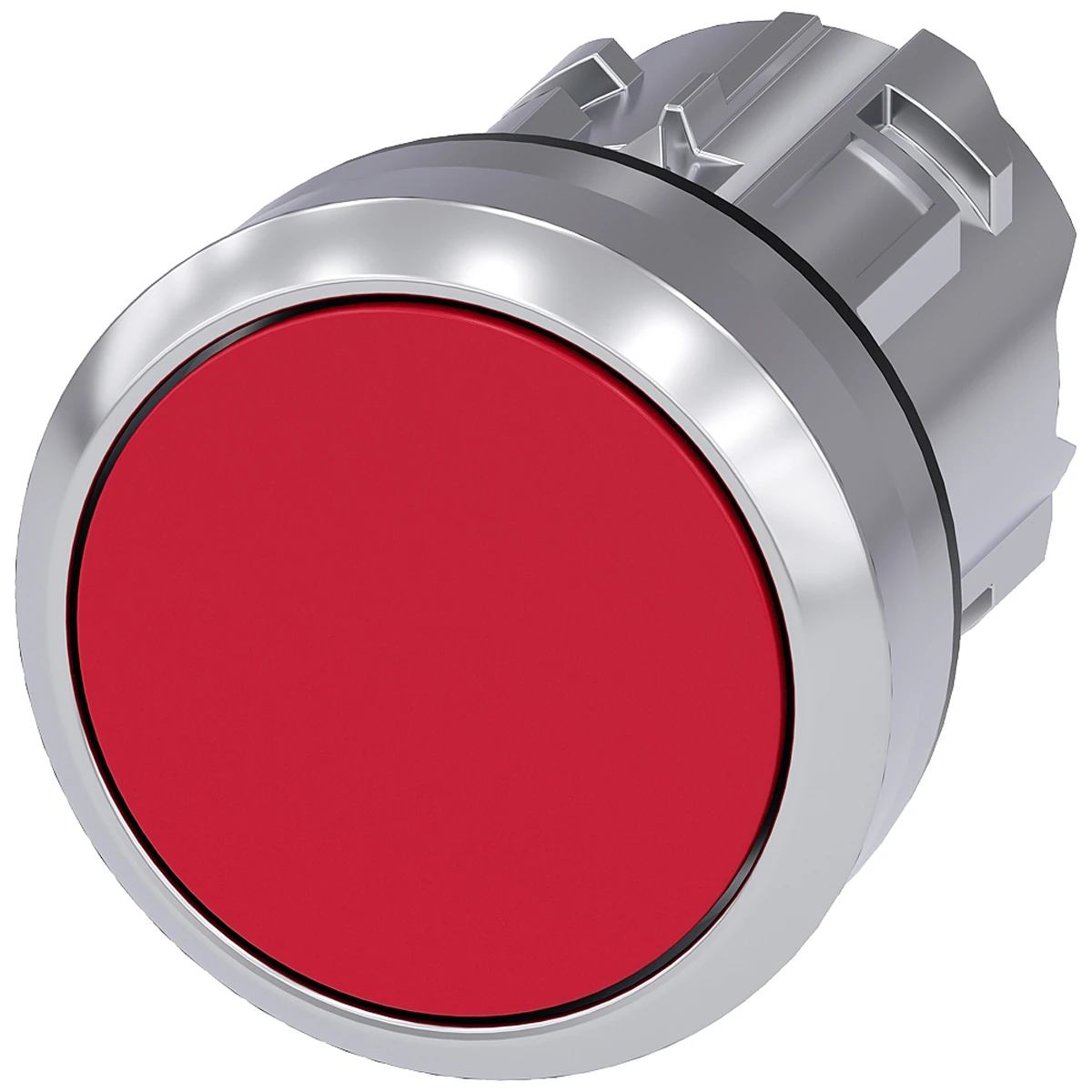

Siemens Push Button 22mm Round Metal Shiny Red
£7.30 Incl. VAT
Siemens standard round pushbutton made up of a plastic actuator surrounded by a high gloss silver colour metal ring. The mounting diameter is 22.3mm whereas the actuating element has a 29.5mm diameter. · · · Modern design. · · Easy to use. · · Extremely rugged. · · Flexible communication. · · Individual labelling of the button cap available. · · Twist prevention integrated into patented holder design. · · No special tools required. · · IEC 60947-1, EN 60947-1 Standards. · · IP69K, IP66, IP67 protection rated.
Description
Technical Specifications Technical Specifications Front element for push button Construction type lens Round Material front ring Metal Colour button Red Type of button Flat Hole diameter 22.3 mm Colour front ring Chrome Number of command positions 1 Width opening 29.5 mm Labelled No Height opening 11 mm With protective cover No Suitable for illumination No Spring-return No With front ring Yes Switching function latching No · Technical Data Sheet – Click to Download
