Siemens Push Button 22mm Round Plastic Clear
Siemens Push Button 22mm Round Plastic Clear
Siemens Push Button 22mm Round Plastic Clear - Image 2
Siemens Push Button 22mm Round Plastic Clear - Image 3

Siemens Push Button 22mm Round Plastic Clear

£5.68 Incl. VAT

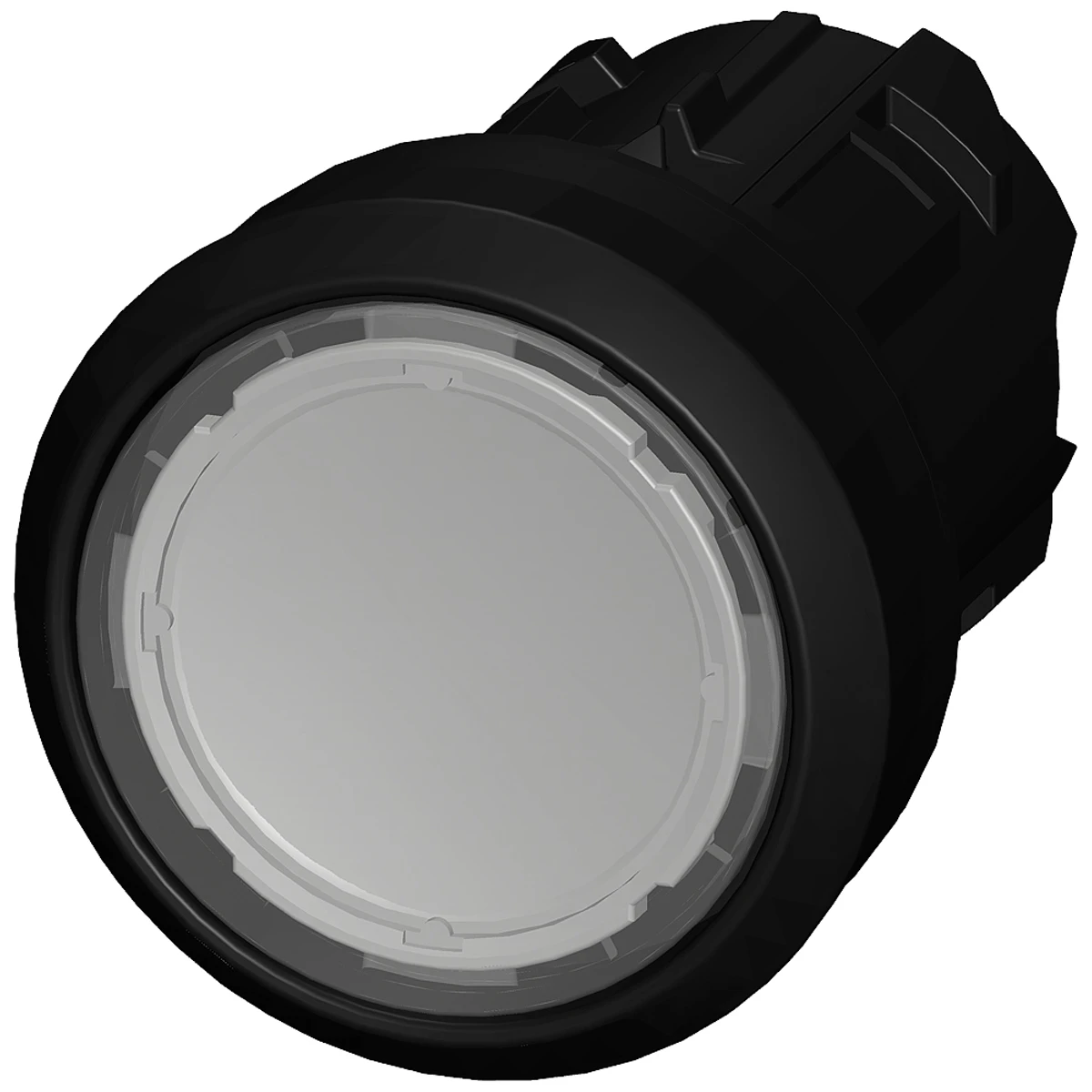

Siemens standard round pushbutton made up of a plastic actuator surrounded by a black plastic ring. The mounting diameter is 22.3mm whereas the actuating element has a 29.5mm diameter. · · · Manner of function: Momentary · · Type of unlocking device: None · · Mechanical sevice life: 10000000 cycles · · Maximum operating frequency: 3600 1/h · · IP66/67/69 Degree of protection · · Vibration resistance: 5g (10-500Hz) · · Shock resistance: 50g · · Ambient temperature: -25 to 70°C

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3SU1000-0AB70-0AA0 Brand: Product Code: 1051118216

Description

Technical Specifications  Technical Specifications Front element for push button Construction type lens Round Material front ring Plastic Colour front ring Black Colour button Clear Number of command positions 1 Type of button Flat Width opening 29.5 mm Hole diameter 22.3 mm With protective cover No Height opening 11 mm Suitable for illumination No Labelled No Spring-return No Switching function latching No With front ring Yes · Technical Data Sheet – Click to Download
