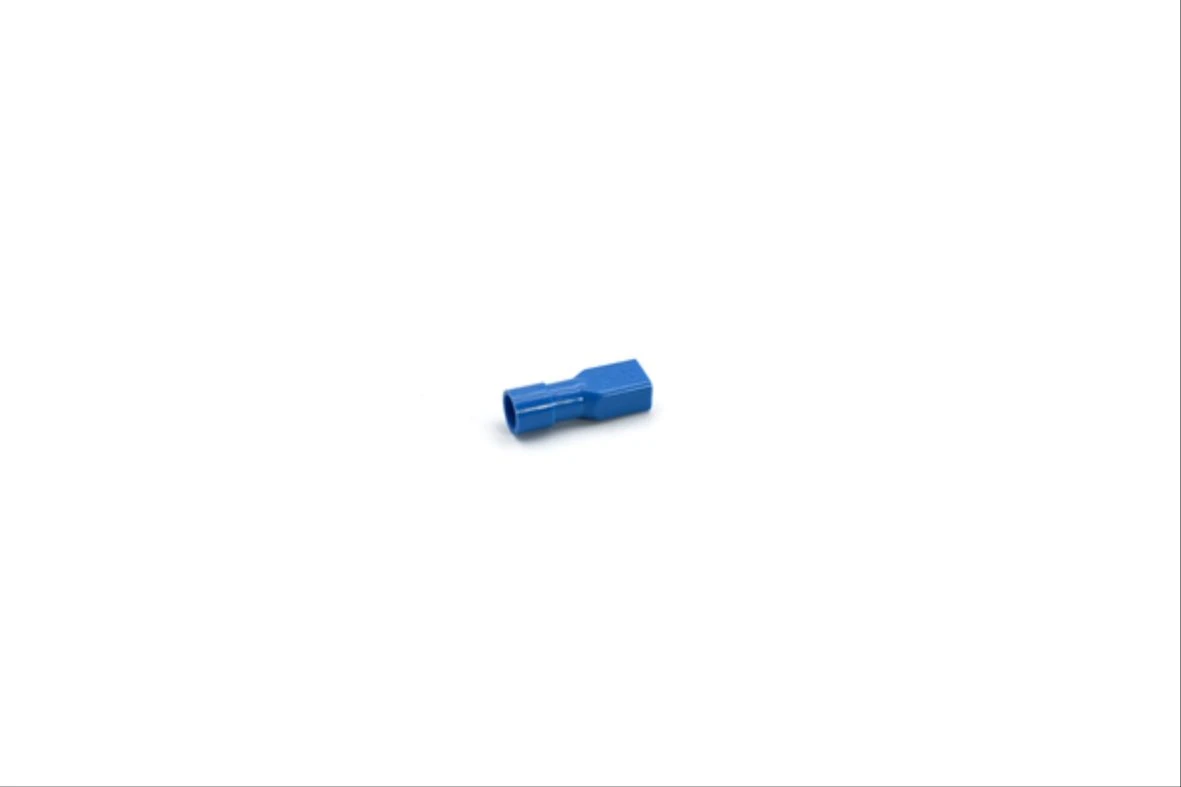

Cembre 1.5mm²-2.5mm² Reinforced Polyamide Pa6.6 Insulated Female Disconnect Terminal 4.8mm X 0.8mm Tab Size Blue

Brand: CembreProduct code: BF-F408PGo Magpie Ref: 5060062387425

1.5mm²-2.5mm² Fully Polycarbonate insulated female disconnect terminal 4.8mm x 0.8mm tab size blue · · · Insulation sleeve in Polycarbonate · · -20°C to +115°C Temperature Range · · Manufactured from Brass Strip with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Halogen Free · · Facilited Introduction of the conductor · · Tab/Pin Size: 4.8×0.8 mm · · Insulation Material: Polycarbonate · · Standards: EN 45545-2:2013 UL 310 (212000) UL-94 V0

£0.24inc VAT£0.20 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Disconnect terminals Insulation Fully isolated Plug dimensions Flat 4.8×0.8 mm Colour insulation Blue Model Plug Material insulation PC Material Brass Nominal cross section 1.5 – 2.5 mm² Max. current (Imax) – A With cam clamp No With tap spreader Yes · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
