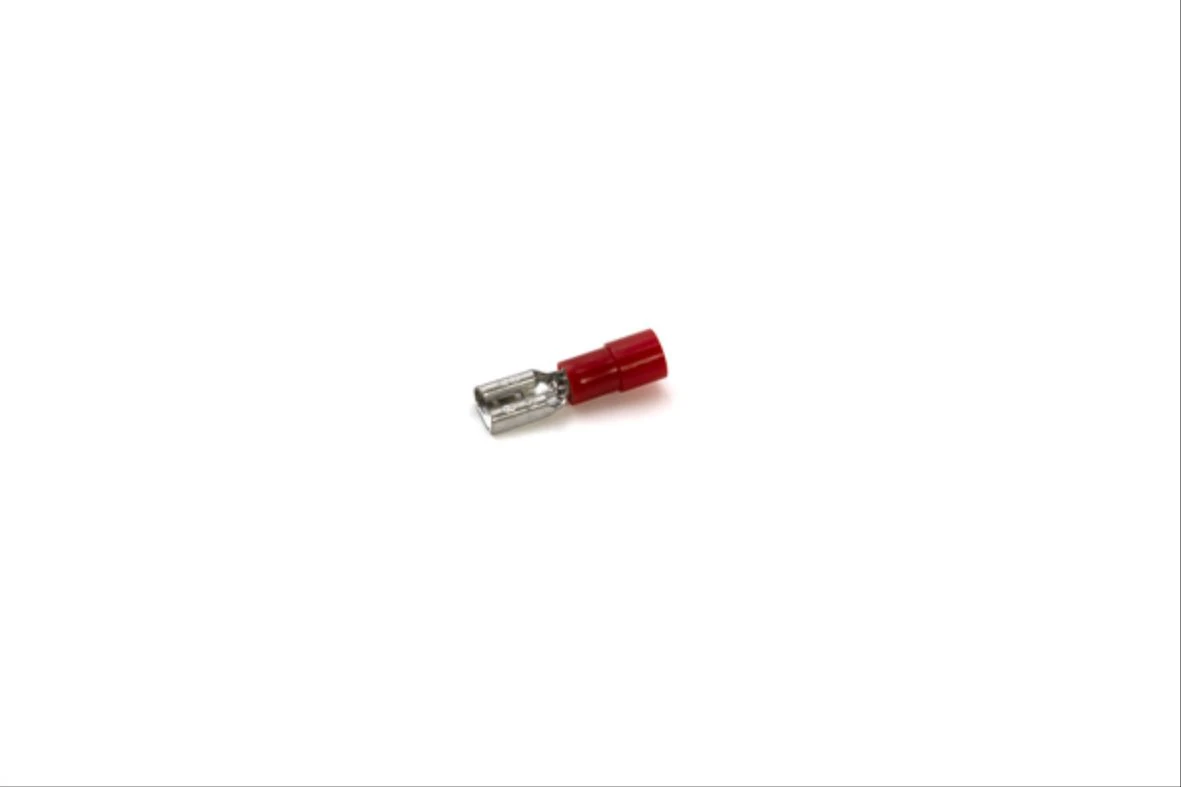

Push-On Terminal Red
Push-On Terminal Red
Push-On Terminal Red - Image 2
Push-On Terminal Red - Image 3
Push-On Terminal Red - Image 4

Push-On Terminal Red

£0.11 Incl. VAT

0.25mm²-1.5mm² Polycarbonate insulated female disconnect terminal 6.35mm x 0.8mm tab size red · · · Insulation sleeve in Polycarbonate · · -20°C to +115°C Temperature Range · · Manufactured from Brass Strip with a purity greater than 99.9% · · Electrolytically tin-plated to avoid oxidisation · · Halogen Free · · Facilited Introduction of the conductor · · Tab/Pin Size: 6.35×0.8 mm · · Insulation Material: Polycarbonate · · Standards: EN 45545-2:2013 UL 310 (212000) UL-94 V0

400 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: RF-F608 Categories: , , Brand: Part Number: 2500040298

Description

Technical Specifications  Technical Specifications Disconnect terminals Insulation Partially isolated Model Plug Material Brass Plug dimensions Flat 6.3×0.8 mm Material insulation PC Colour insulation Red Max. current (Imax) – A AWG-range 22 – 16 Nominal cross section 0.25 – 1.5 mm² With tap spreader Yes With cam clamp No
