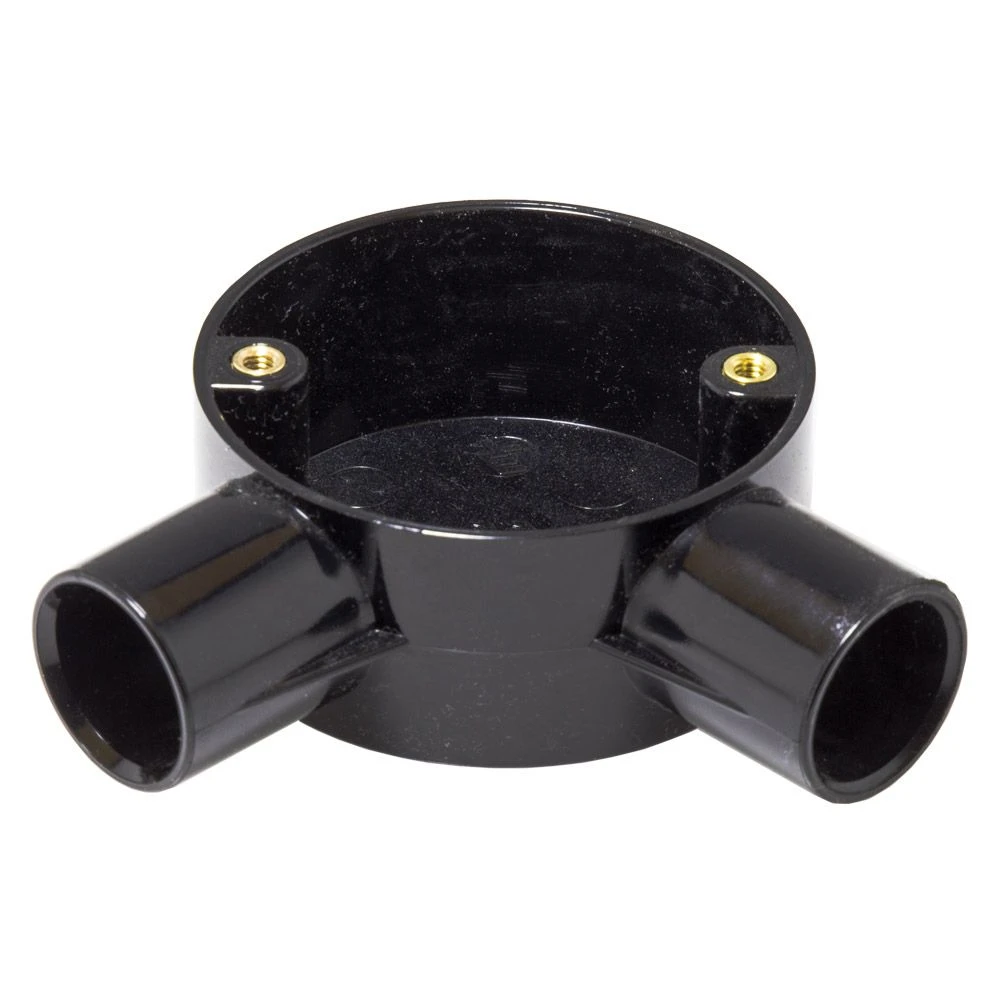

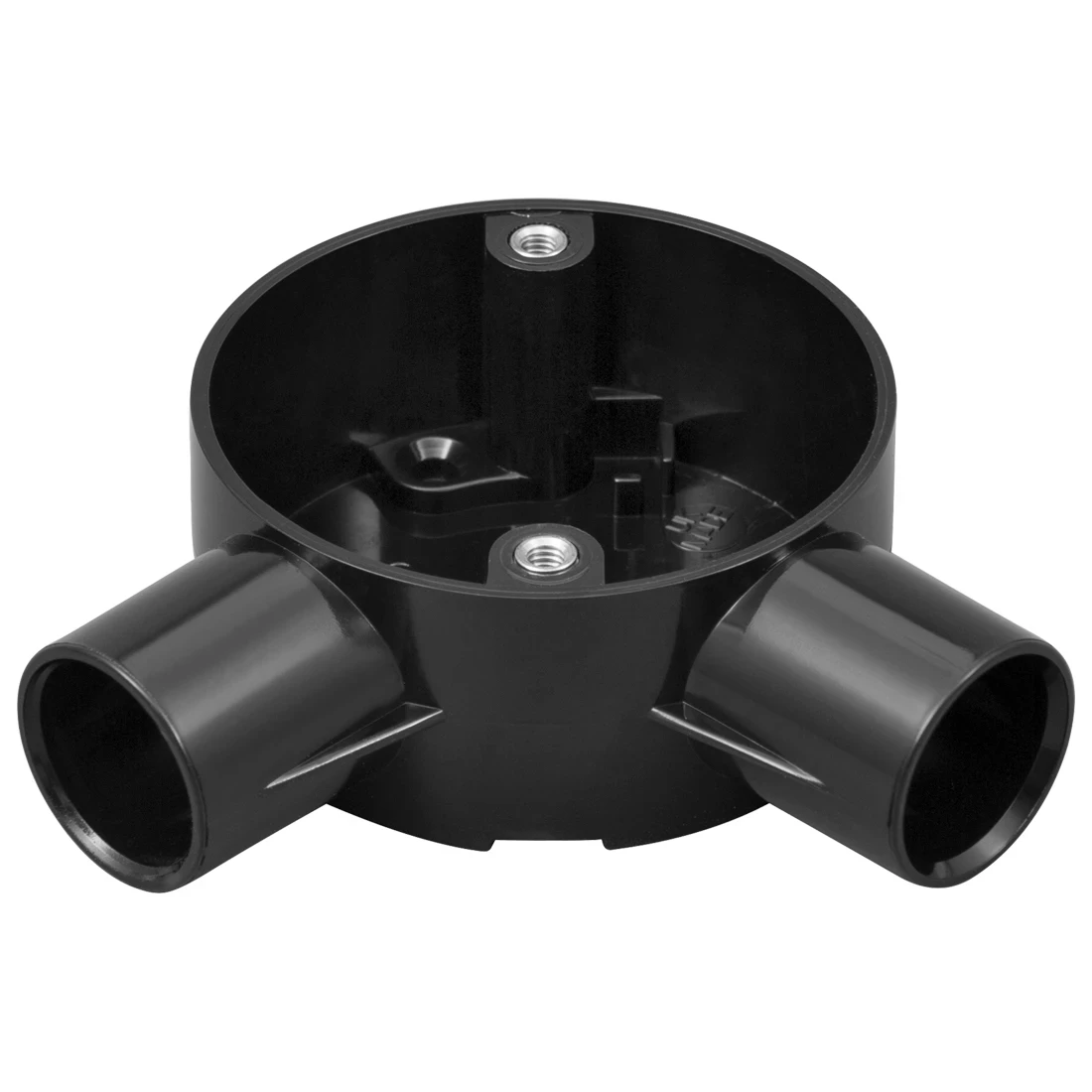

PVC-U 2-Way Angle Box 20mm Black
PVC-U 2-Way Angle Box 20mm Black
PVC-U 2-Way Angle Box 20mm Black - Image 2
PVC-U 2-Way Angle Box 20mm Black - Image 3

PVC-U 2-Way Angle Box 20mm Black

£2.77 Incl. VAT

Circular angle box made up of a black polyvinyl chloride (PVC) housing body, designed for use as an accessory for electrical conduits. Suitable for use in industrial and commercial environments and is capable of suspending load of up to 3kg centrally at 6 · · · Durable and impact resistant · · Easy to assemble and install · · Fixing centre is 50.8mm and fitted with M4 brass insert. · · Provision for MET1 brass earth terminal · · All boxes have threaded brass inserts · · Manufactured using 100% recycled material

7 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 2MRB4BK Categories: , , Brand: Part Number: 2500019235

Description

Technical Specifications  Technical Specifications Surface mounted box/housing Colour Black Material Plastic Diameter 65 mm Depth 29 mm Explosion-tested version No With screening No Entry point on rear No Working temperature -5 – 60 °C Number of entry points 2 Max. conductor cross section – mm² Tackable No Mounting in the soil No Casting compound included No Mounting under water No Weatherproof No Transparent cover No Sealable No Castable No Halogen free No · Technical Data Sheet – Click to Download
