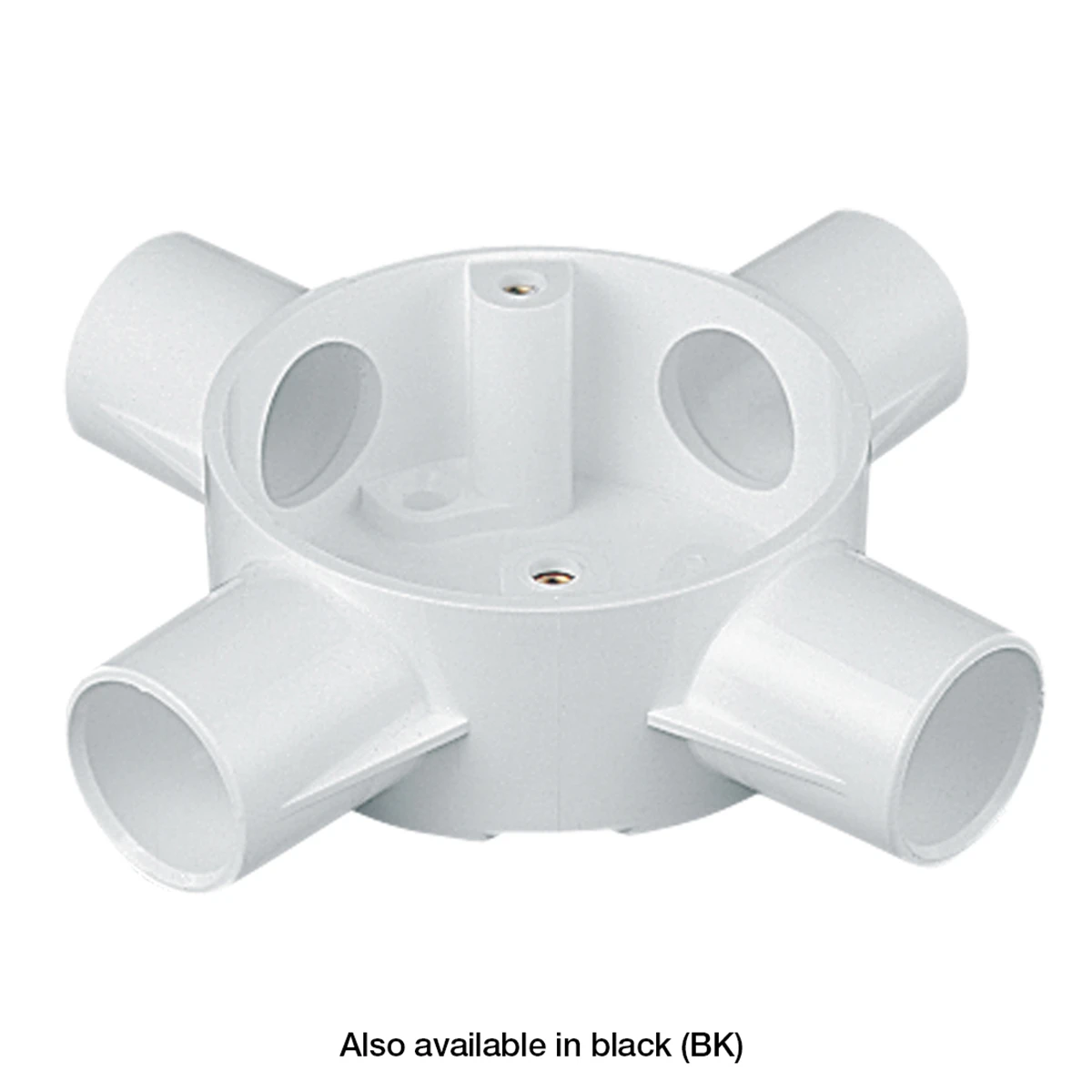

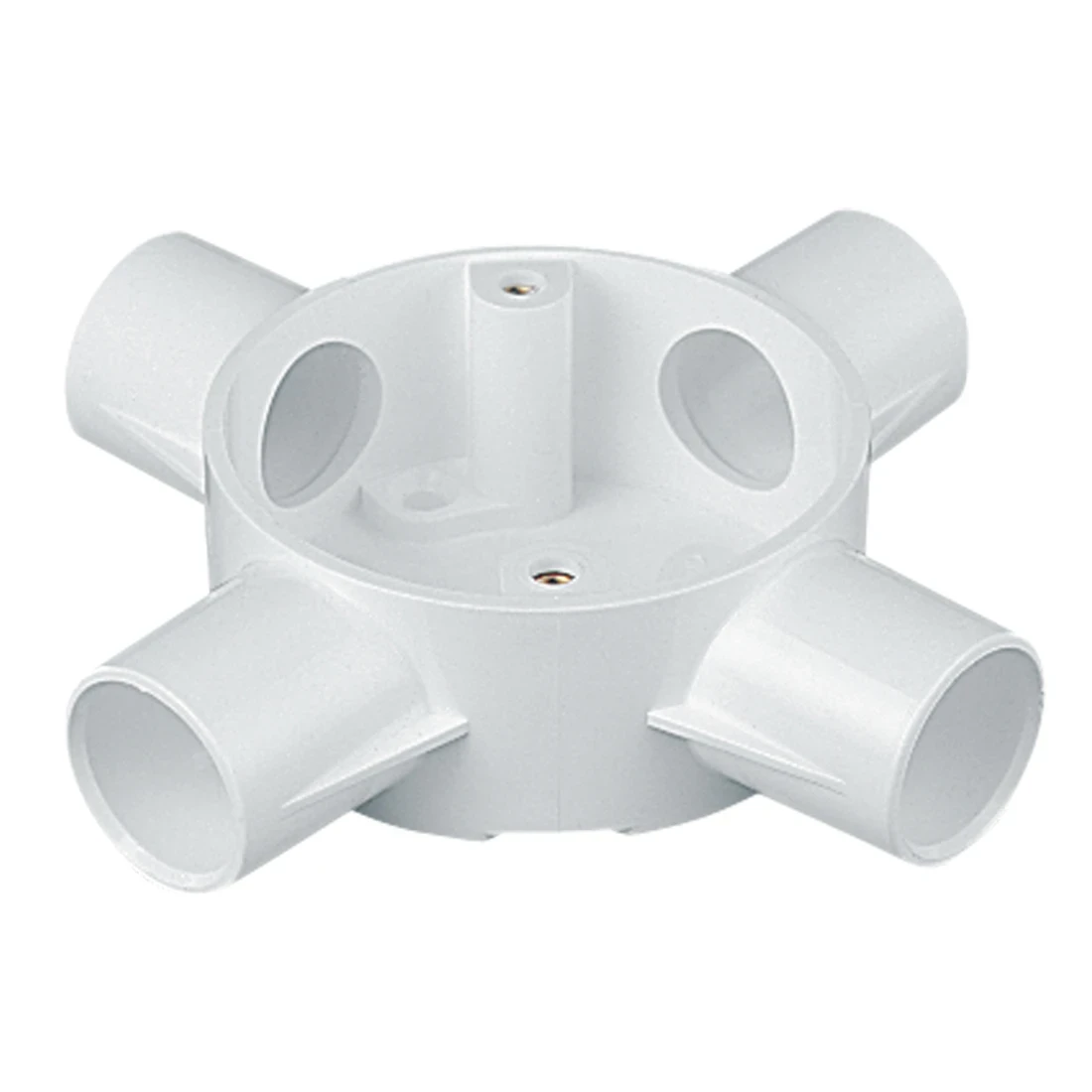

Marshall-Tufflex PVC-U 4-Way Conduit Box 20mm White
£3.59 Incl. VAT
Intersection conduit box made up of a white polyvinyl chloride (PVCu) housing body, designed for use as an accessory for electrical conduits. Suitable for use in industrial and commercial environments and is capable of suspending load of up to 3kg central · · · Fixing centre is 50.8mm and fitted with M4 brass insert. · · Durable and impact resistant · · Easy to assemble and install · · Provision for MET1 brass earth terminal · · All boxes have threaded brass inserts · · Manufactured using 100% recycled material
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Surface mounted box/housing Colour White Material Plastic Depth 29 mm Diameter 65 mm Max. conductor cross section – mm² Number of entry points 4 Working temperature -5 – 60 °C Tackable No With screening No Explosion-tested version No Weatherproof No Transparent cover No Castable No Mounting in the soil No Casting compound included No Sealable No Mounting under water No Entry point on rear Yes Halogen free No · Technical Data Sheet – Click to Download
