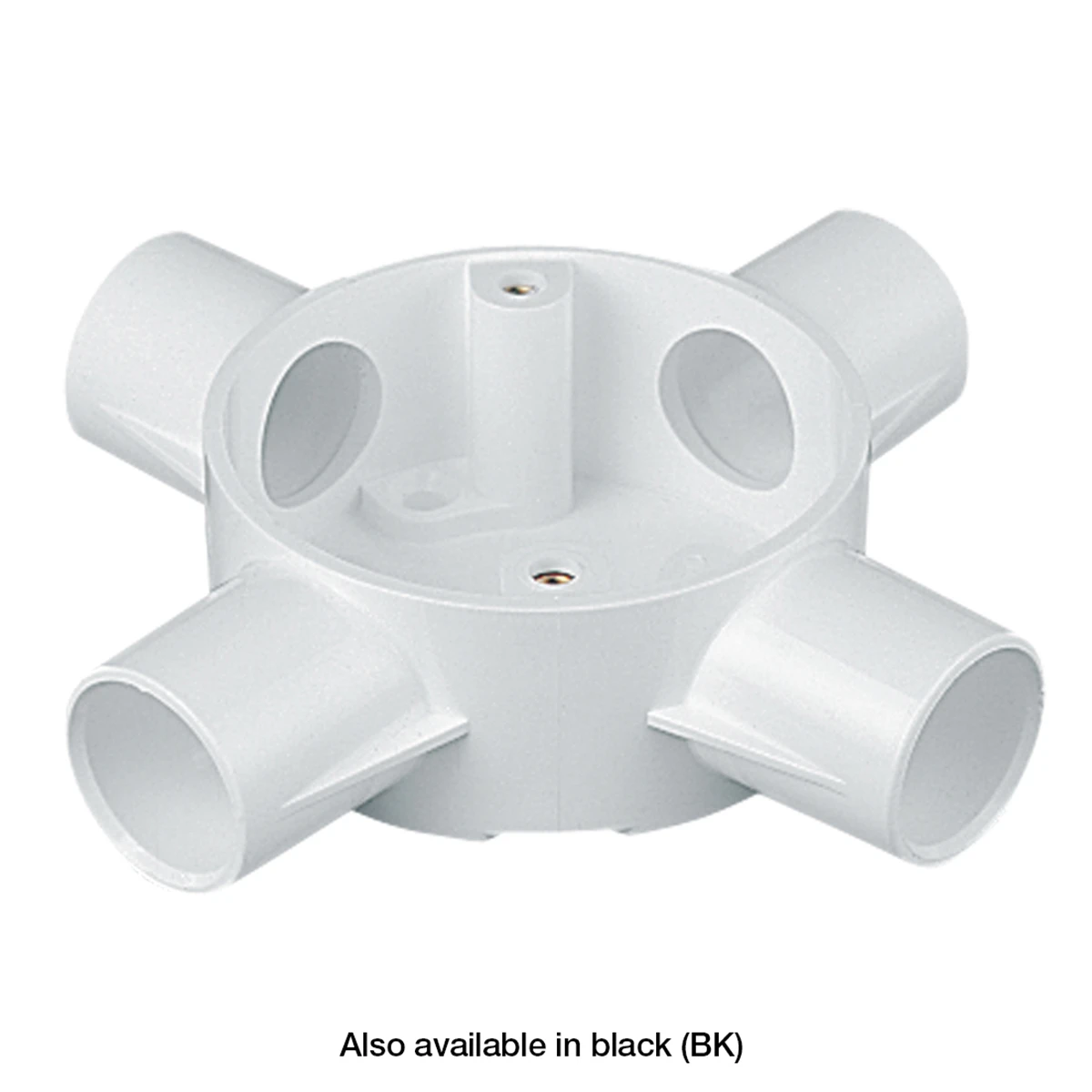

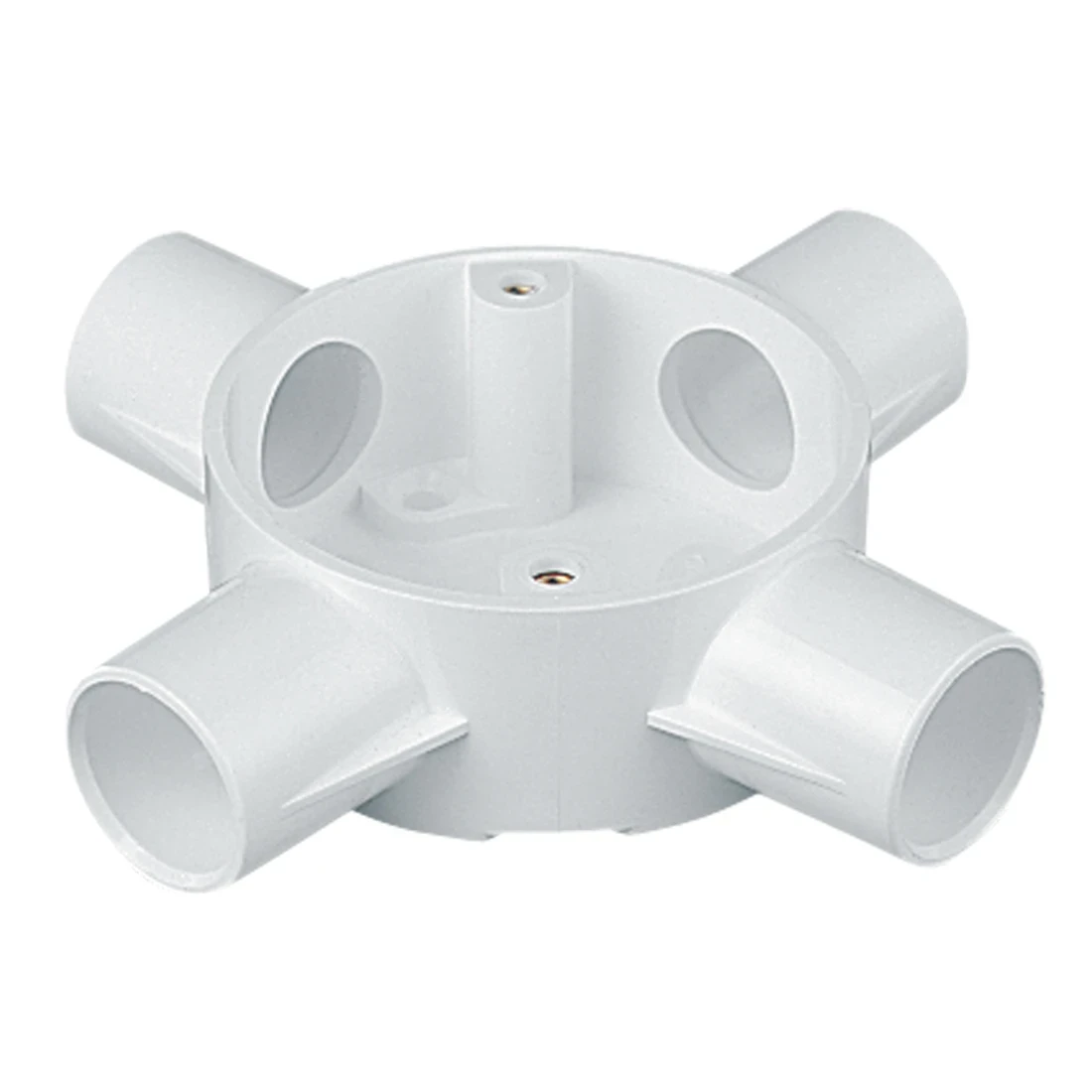

PVC-U 4-Way Conduit Box 25mm White
PVC-U 4-Way Conduit Box 25mm White
PVC-U 4-Way Conduit Box 25mm White - Image 2
PVC-U 4-Way Conduit Box 25mm White - Image 3

PVC-U 4-Way Conduit Box 25mm White

£4.85 Incl. VAT

Intersection conduit box made up of a white polyvinyl chloride (PVCu) housing body, designed for use as an accessory for electrical conduits. Suitable for use in industrial and commercial environments and is capable of suspending load of up to 3kg central · · · Fixing centre is 50.8mm and fitted with M4 brass insert. · · Durable and impact resistant · · Easy to assemble and install · · Provision for MET1 brass earth terminal · · All boxes have threaded brass inserts · · Manufactured using 100% recycled material

30 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 3MRB6WH Categories: , , Brand: Part Number: 2500020991

Description

Technical Specifications  Technical Specifications Surface mounted box/housing Colour White Depth 32 mm Material Plastic Diameter 65 mm Max. conductor cross section – mm² RAL-number (similar) 9003 Number of entry points 4 Working temperature -5 – 60 °C Entry point on rear No Weatherproof No Explosion-tested version No Tackable No Sealable No With screening No Mounting in the soil No Casting compound included No Castable No Mounting under water No Transparent cover No Halogen free No · Technical Data Sheet – Click to Download
