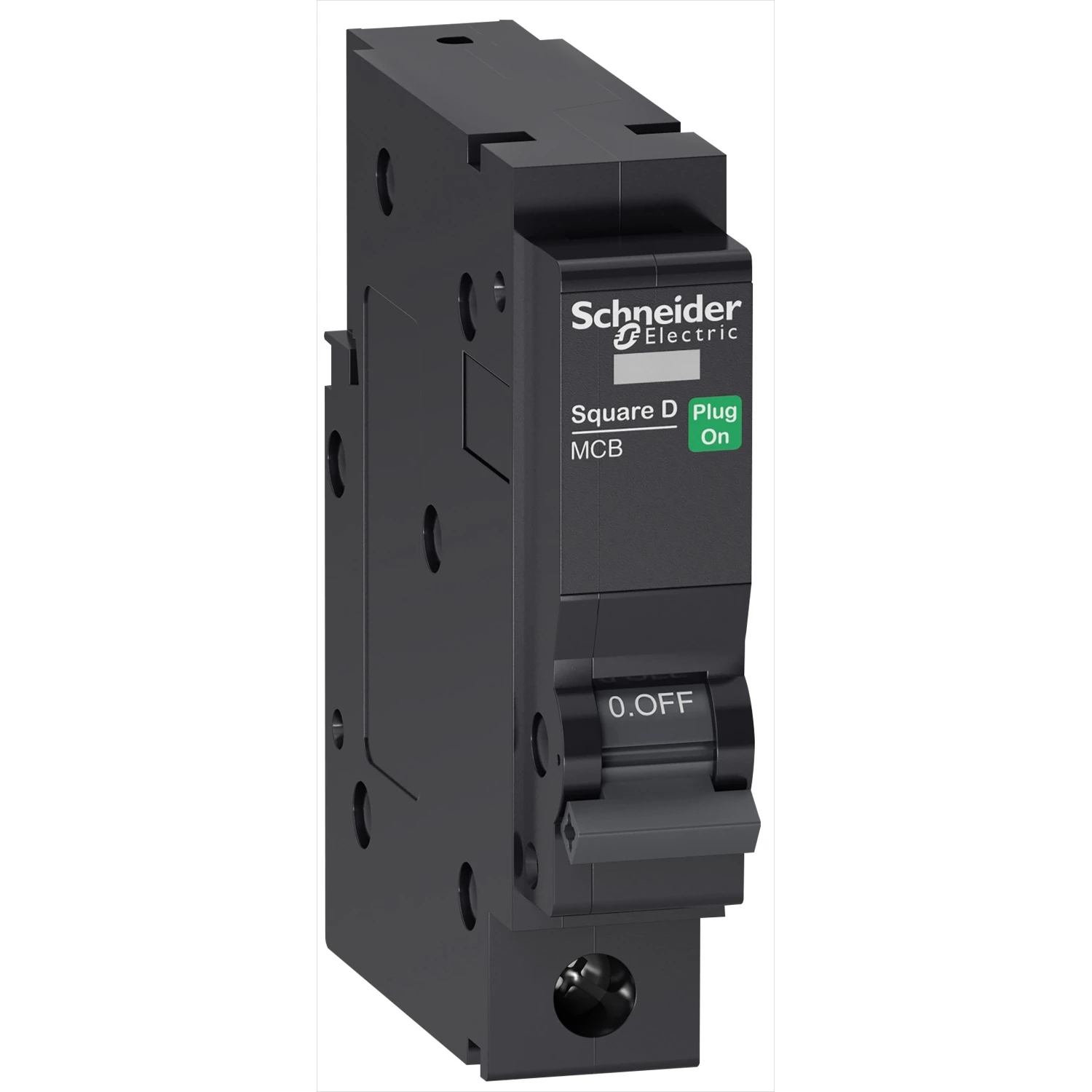

QOvs MCB 1P C Curve 40A 10kA

Description

Technical Specifications  Technical Specifications Miniature circuit breaker (MCB) Rated current 40.00 A Rated insulation voltage Ui 500.00 V Tripping characteristic (type/curve) C Width in number of modular spacings 1.00 Over voltage category 4.00 Current limiting class 3.00 Rated short-circuit breaking capacity Icn EN 60898 at 400 V 10.00 kA Number of protected poles 1.00 Rated short-circuit breaking capacity Icn EN 60898 at 230 V 10.00 kA Number of poles (total) 1.00 Pollution degree 3.00 Rated voltage 240.00 V Recess depth 58.80 mm Rated impulse-withstand voltage (Uimp) 4.00 kV Frequency 50.00 – 60.00 Hz Connectable conductor cross section solid-core 2.50 – 35.00 mm² Connectable conductor cross section multi-wired 2.50 – 35.00 mm² Ambient temperature during operating 5.00 – 60.00 °C Concurrently switching N-neutral Yes Additional equipment possible Yes Suitable for flush-mounted installation No · Technical Data Sheet – Click to Download
