Quantum EV Charging Pedestal 3 Phase White 2 x Type 2 (IEC 62196) Charging Sockets Up to 22kW (32A) per socket 1 x 63A 400V AC
£3,075.91 Incl. VAT

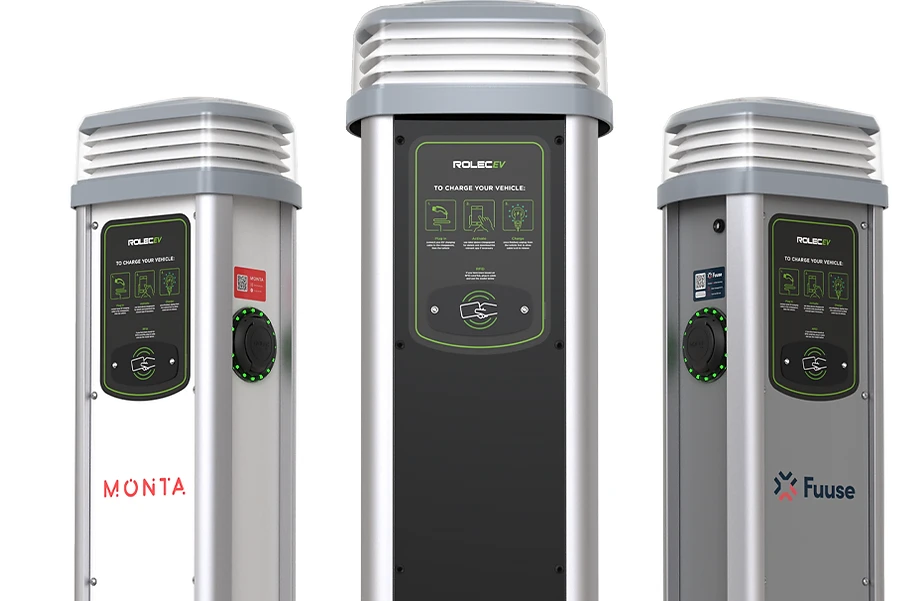

The QUANTUM EV charging pedestal is a sophisticated and resilient EV charging point, providing a combination of durability and impeccable design for all locations. This charger’s integrated LED amenity lighting also provides greater visibility of the charging bays and surrounding areas.This future-proof OCPP compliant pedestal can offer a simple plug & charge or pay-to-charge solution via the EV driver’s smartphone and/or RFID card/fob through any chosen OCPP back-office management system. · · · Plug & charge, mobile app or RFID controlled charging · · TruePEN PME fault detection (no earth rod required) · · Cable lock feature (can be permanently locked by user) · · Integrated RFID reader(s)
Out of stock
Description
Technical Specifications Technical Specifications Charging device for electric vehicles Installation side connection model 3-phase Impact resistance (IK rating) IK10 Degree of protection (IP rating) IP54 Frequency 50/60 Hz Open Charge Point Protocol (OCPP) version 1.6 Voltage type of supply voltage AC Width 375 mm Depth 275 mm Number of charging units 2 Networkable via Wi-Fi Yes Suitable for wall mounting No Tube mounting possible No Max. output current DC 32 A Max. power per charging point 22 kW Number of socket outlets Type 2 2 Height 1440 mm Floor mounting Yes Radio standard 4G Yes Networkable via LAN Yes · Technical Data Sheet – Click to Download
