Quantum EV Single Phase White 4X Type 2 (Iec 62196) Charging Sockets Up To 7.4Kw (32A) Per Socket 2X 63A 230V Ac
£4,365.07 Incl. VAT

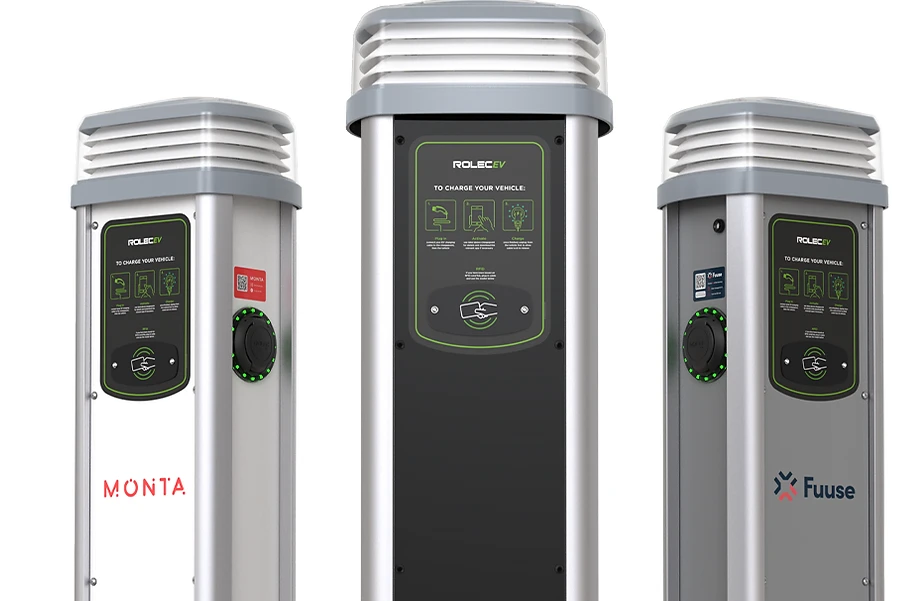

The QUANTUM EV charging pedestal is a sophisticated and resilient EV charging point, providing a combination of durability and impeccable design for all locations. This charger’s integrated LED amenity lighting also provides greater visibility of the charging bays and surrounding areas.This future-proof OCPP compliant pedestal can offer a simple plug & charge or pay-to-charge solution via the EV driver’s smartphone and/or RFID card/fob through any chosen OCPP back-office management system. · · · Plug & charge, mobile app or RFID controlled charging · · TruePEN PME fault detection (no earth rod required) · · Cable lock feature (can be permanently locked by user) · · Integrated RFID reader(s)
Out of stock
Description
Technical Specifications Technical Specifications Charging device for electric vehicles Installation side connection model Single phase Voltage type of supply voltage AC Frequency 50/60 Hz Impact resistance (IK rating) IK10 Open Charge Point Protocol (OCPP) version 1.6 Width 375 mm Max. output current DC 32 A Tube mounting possible No Suitable for wall mounting No Max. power per charging point 7.4 kW Number of charging units 4 Number of socket outlets Type 2 4 Depth 274 mm Height 1440 mm Networkable via Wi-Fi Yes Floor mounting Yes Networkable via LAN Yes Radio standard 4G Yes · Technical Data Sheet – Click to Download
