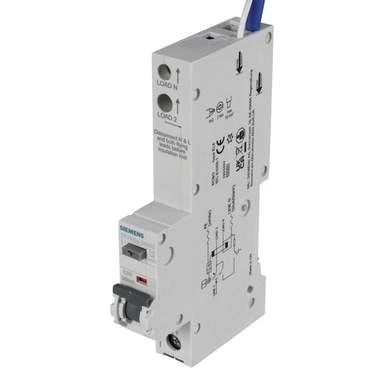

Siemens RCBO 10kA 1P+N Type A 30mA C-Char In: 20 A Un Ac: 230 V Pigtail 600mm Solid N

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Rated current 20 A Rated voltage 240 V Current limiting class 3 Rated insulation voltage Ui 264 V Number of poles (total) 1 Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Rated fault current 0.03 A Width in number of modular spacings 1 Rated short-circuit breaking capacity according to EN 61009 10 kA Connectable conductor cross section multi-wired 0.75 – 16 mm² Connectable conductor cross section solid-core 0.75 – 16 mm² Ambient temperature during operating -25 – 40 °C Concurrently switching N-neutral No Anti-nuisance tripping version Yes With interlocking device No · Technical Data Sheet – Click to Download
