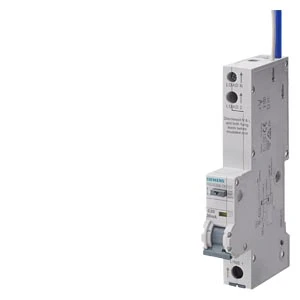

Siemens Rcbo 10 Ka 1P+N Type Ac 30 Ma C-Char In: 20 A Un Ac: 230 V Pigtail 600 Mm Solid N
Siemens Rcbo 10 Ka 1P+N Type Ac 30 Ma C-Char In: 20 A Un Ac: 230 V Pigtail 600 Mm Solid N
Siemens Rcbo 10 Ka 1P+N Type Ac 30 Ma C-Char In: 20 A Un Ac: 230 V Pigtail 600 Mm Solid N - Image 2
Siemens Rcbo 10 Ka 1P+N Type Ac 30 Ma C-Char In: 20 A Un Ac: 230 V Pigtail 600 Mm Solid N - Image 3

Siemens Rcbo 10 Ka 1P+N Type Ac 30 Ma C-Char In: 20 A Un Ac: 230 V Pigtail 600 Mm Solid N

£36.30 Incl. VAT

Rcbo electrical 10ka 1p+n type ac 30ma c-char in:20a unac:230v pigtail 600mm solid neutral. · · · Can be used with 5ST accessory range · · Single pole and neutral · · 10kA breaking capacity

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: 5SU9304-1KK20 Brand: Product Code: 1052097238

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Disconnection characteristic Undelayed Degree of protection (IP rating) IP20 Leakage current type AC Voltage type AC Rated voltage 230 V Rated current 20 A Number of protected poles 1 Recess depth 70 mm Surge current capacity 1 kA Rated fault current 0.03 A Over voltage category 3 Rated short-circuit breaking capacity IEC 60947-2 10 kA Pollution degree 2 Current limiting class 3 Number of poles (total) 2 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Rated short-circuit breaking capacity according to EN 61009 10 kA Width in number of modular spacings 1 Connectable conductor cross section solid-core 0.75 – 35.0 mm² Connectable conductor cross section multi-wired 0.75 – 35.0 mm² Concurrently switching N-neutral No With interlocking device Yes Anti-nuisance tripping version Yes · Technical Data Sheet – Click to Download
