FULL-6993

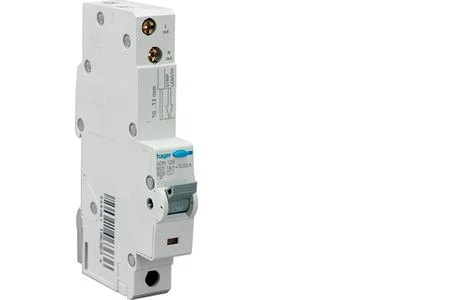

Product image supplied by the manufacturer
Circuit Breakers & Devices

Hager RCBO 1 Module 1 Pole 6kA Type B 40A 30mA Type A

Brand: HagerProduct code: ADB440GGo Magpie Ref: 5060062328759

This is a single pole, single module RCBO (Residual Current Breaker with Overcurrent protection) with a rated current of 40A, a breaking capacity of 6kA, and a residual current sensitivity of 30mA. This means that it can protect your circuits from both overcurrent and earth faults, and is suitable for a wide range of applications. · · · Neutral position right · · Fixing mode DIN rail type O (symmetrical) · · Curve B · · Rated operational voltage Ue 230 / 240 V · · Frequency 50/60 Hz · · Type of supply voltage AC · · Rated insulation voltage 250 V · · Rated residual operating current 30 mA

£29.71inc VAT£24.76 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
PRODUCT INFORMATION

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) B Mounting method DIN rail Rated current 40 A Number of poles (total) 1 · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download · Technical Data Sheet – Click to Download
