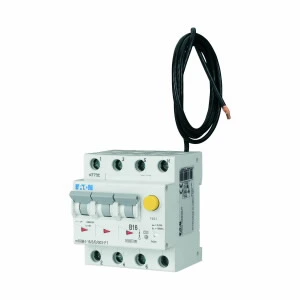

Eaton RCBO 4P Type C 20A 30mA 10kA
Brand: EatonProduct code: 169644Go Magpie Ref: 5060062388836
RCBO (residual-current circuit breaker with overload protection) mRBM4-UK-PT, 3 pole+N, Rated current In: 20 A, Rated fault current I?N: 0.03 A, Rated switching capacity according to IEC/EN 61009: 10 kA, Switchgear for residential and commercial applications · · · Rated breaking capacity 10kA · · Conditionally surge current-proof 250A · · Contact position indicator red – green · · Earth fault current tripping indicator white – blue · · Wide variety of rated tripping currents · · Free terminal space despite installed busbar
£366.73inc VAT£305.61 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Frequency 50 Hz Disconnection characteristic Undelayed Leakage current type A Degree of protection (IP rating) IP20 Rated insulation voltage Ui 440 V Voltage type AC Rated fault current 0.03 A Surge current capacity 250 kA Width in number of modular spacings 4 Recess depth 69.5 mm Rated current 20 A Rated voltage 415 V Over voltage category 3 Number of poles (total) 3 Rated short-circuit breaking capacity IEC 60947-2 0 kA Current limiting class 3 Number of protected poles 3 Pollution degree 2 Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Rated short-circuit breaking capacity according to EN 61009 10 kA Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 25 mm² Ambient temperature during operating -25 – 40 °C Concurrently switching N-neutral No With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
