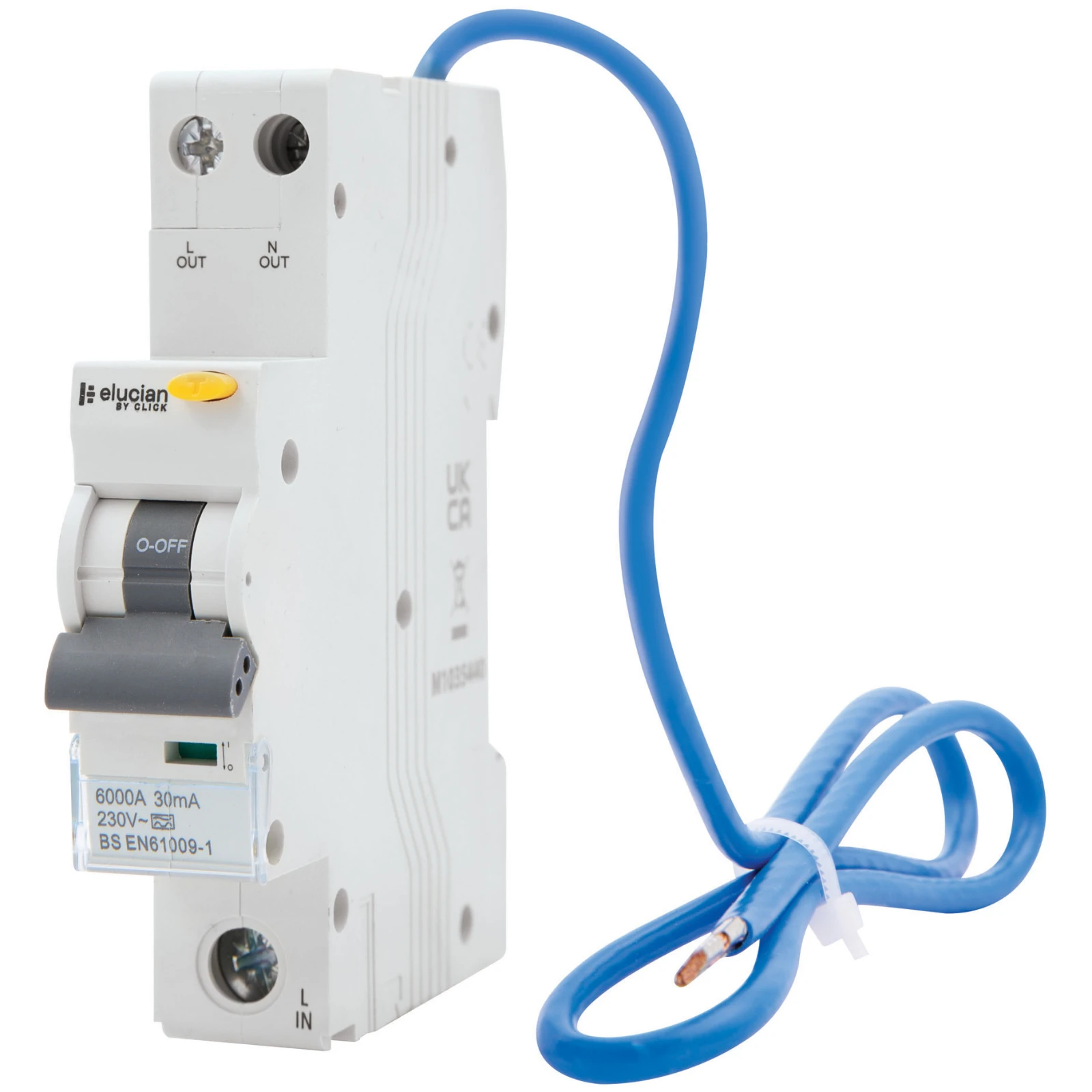

Click 6A Single Pole 30mA B Curve True 6kA RCBO
£19.30 Incl. VAT
The Elucian Protective Devices simply click onto the DIN Rail and can be secured with this locking mechanism. This means work can be carried out quicker and without dealing with tight spaces.Lockout devices (available at Unicrimp) are designed to attach to the moving part of the protective device, usually a switch toggle (rocker switch) which moves from the on to off position. This ensures the switch cannot be switched back on while work is being carried out · · · Clip in Devices · · Lock Off Capabilities · · Clear Indication · · 3 Year Product Warranty · · Type A · · Large Terminal Capacity · · Lockable switch (with compatible kit)
✓ In stock – Delivery in 1–2 days
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) B Mounting method DIN rail Recess depth 70 mm Rated current 6 A Width in number of modular spacings 1 Rated voltage 240 V Rated short-circuit breaking capacity IEC 60947-2 6 kA Number of protected poles 1 Rated impulse-withstand voltage (Uimp) 4 kV Number of poles (total) 2 Rated short-circuit breaking capacity according to EN 61009 6 kA Connectable conductor cross section solid-core 2.5 – 25 mm² Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Ambient temperature during operating -25 – 40 °C Anti-nuisance tripping version No Connectable conductor cross section multi-wired 1 – 16 mm² Concurrently switching N-neutral No With interlocking device No · Technical Data Sheet – Click to Download
