RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 10A 100mA 10kA
RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 10A 100mA 10kA
RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 10A 100mA 10kA - Image 2
RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 10A 100mA 10kA - Image 3

RCBO Plug On Neutral iC60H Single Pole+Neutral Class A Type C 10A 100mA 10kA

£227.39 Incl. VAT

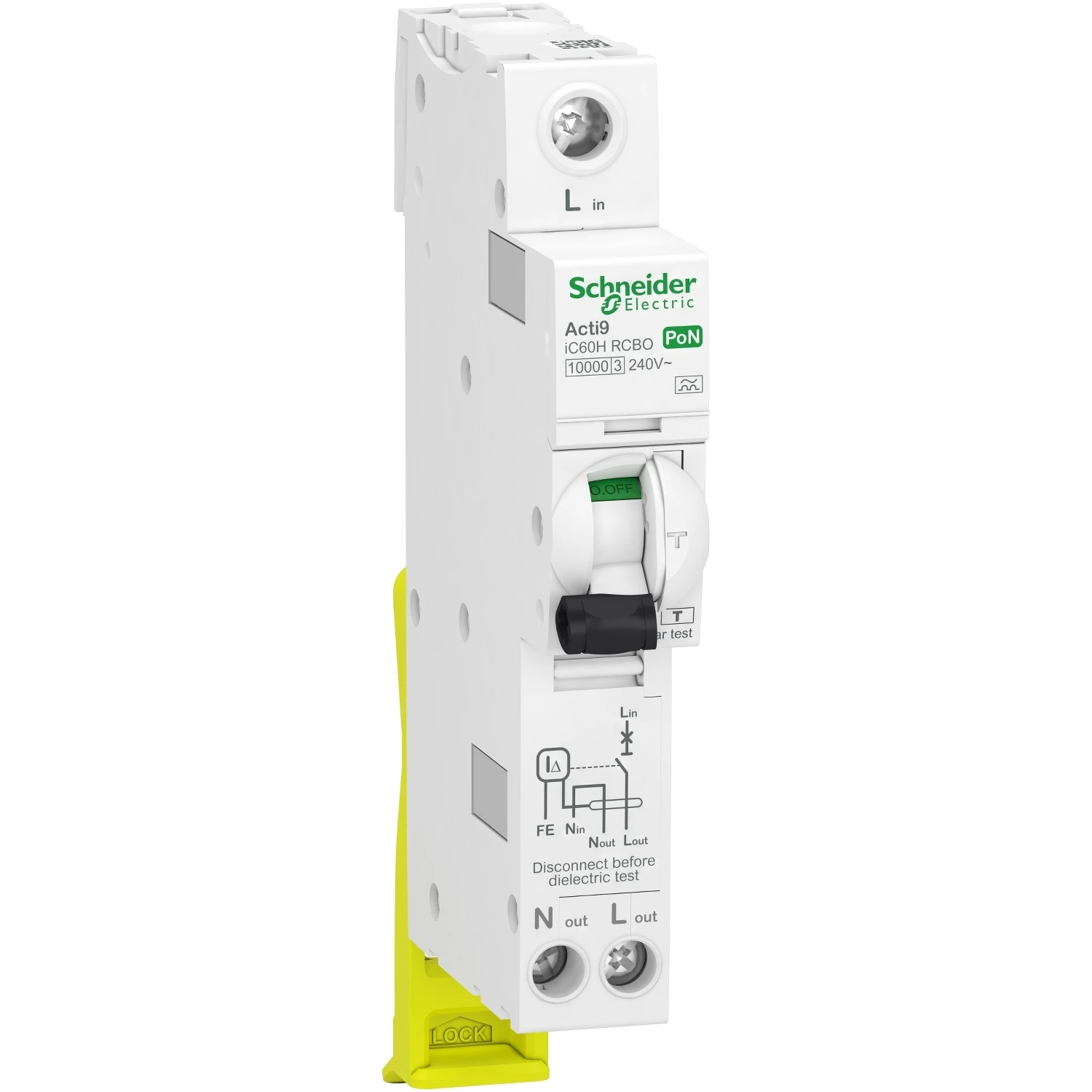

The Schneider Electric Acti9 ic60H PoN RCBO is designed to be install to the Schneider Acti9 Isobar P PoN Distribution Boards only. This 10Amp 100mA C Type single pole, 240 volt RCBO has a 10KA rating (In) with a ‘Plug on Neutral’ and earth that reduces installation time and is available in 10 & 100mA. · · · Plug on neutral cuts installation time by 50% and provides enhanced safety and reliability · · Compact design is perfect for space-saving solutions · · Padlockable in ON/OFF positions · · Clip-on DIN rail mounting mode · · 20000 cycle mechanical durability · · 5000 cycle electrical durability · · Green Premium Product

6 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: A9D06810 Categories: , , Brand: Part Number: 2501108975

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Recess depth 72.00 mm Tripping characteristic (type/curve) C Rated voltage 240.00 V Rated current 10.00 A Pollution degree 3.00 Over voltage category 2.00 Rated fault current 0.10 A Rated impulse-withstand voltage (Uimp) 4.00 kV Width in number of modular spacings 1.00 Surge current capacity 0.25 kA Number of poles (total) 2.00 Current limiting class 3.00 Rated insulation voltage Ui 400.00 V Number of protected poles 1.00 Rated short-circuit breaking capacity Icn according to EN 61009-1 10.00 kA Connectable conductor cross section solid-core 1.00 – 25.00 mm² Connectable conductor cross section multi-wired 1.00 – 16.00 mm² Ambient temperature during operating -15.00 – 60.00 °C Suitable for flush-mounted installation No Anti-nuisance tripping version No With interlocking device No Concurrently switching N-neutral No · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2205383
