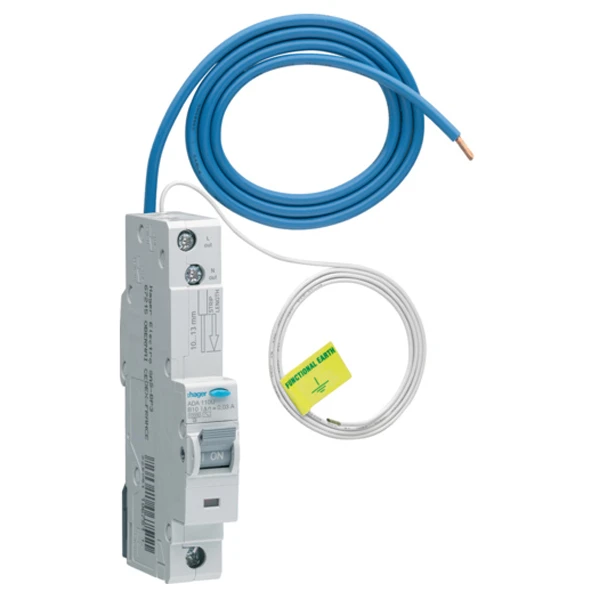

RCBO Single Pole Class A Type B 10A 30Ma 10Ka 1 Module
RCBO Single Pole Class A Type B 10A 30Ma 10Ka 1 Module
RCBO Single Pole Class A Type B 10A 30Ma 10Ka 1 Module - Image 2

RCBO Single Pole Class A Type B 10A 30Ma 10Ka 1 Module

£43.45 Incl. VAT

Hager ADA Electronic Residual Current Circuit Breaker with Overcurrent Protection (RCBO) provides MCB overload protection and RCD earth leakage protection (protects against electrical shocks by direct or indirect contact). This is ideal residential, commercial and industrial applications. This RCDO is designed for din rail mounting in Hager 3 phase distribution boards. It is commonly used in light commercial environments such as offices with large fluorescent or LED lighting circuits · · · Rated current 10 Amp · · Rated residual operating current 30mA · · Single Pole + Solid Neutral · · Tripping characteristics Type B · · Type A · · Flying neutral lead: 700mm · · Breaking capacity: 10kA · · Complies with BS EN 61009-1, BS IEC 1009-2-2 · · Terminal Capacities 25mm2 rigid / 16mm2 flexible · · Insulated DIN clip

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ADA110U Categories: , , Brand: Part Number: 2501145627

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) B Frequency 50 Hz Voltage type AC Rated current 10 A Leakage current type A Rated voltage 240 V Number of poles (total) 1 Rated short-circuit breaking capacity according to EN 61009 10 kA Rated fault current 0.03 A · Technical Data Sheet – Click to Download
