RCBO Single Pole Class A Type B 25A 30Ma 10Ka 1 Module
RCBO Single Pole Class A Type B 25A 30Ma 10Ka 1 Module
RCBO Single Pole Class A Type B 25A 30Ma 10Ka 1 Module - Image 2

RCBO Single Pole Class A Type B 25A 30Ma 10Ka 1 Module

£51.07 Incl. VAT

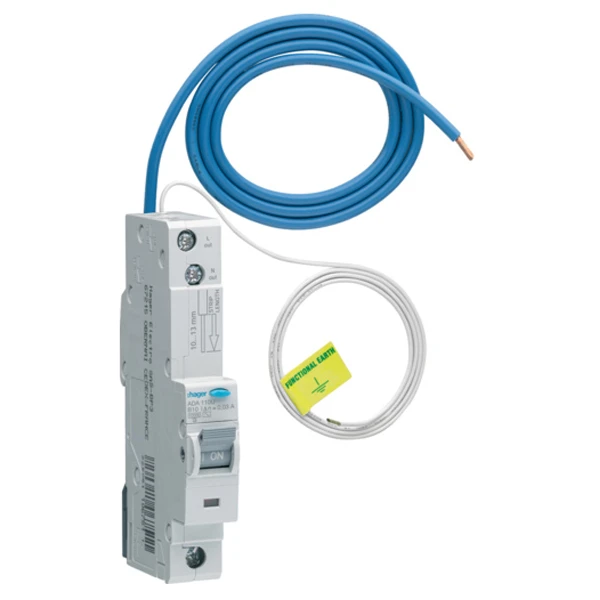

Hager ADA Electronic Residual Current Circuit Breaker with Overcurrent Protection (RCBO) provides MCB overload protection and RCD earth leakage protection (protects against electrical shocks by direct or indirect contact). This is ideal residential, commercial and industrial applications. This RCDO is designed for din rail mounting in Hager 3 phase distribution boards. It is commonly used in light commercial environments such as offices with large fluorescent or LED lighting circuits · · · Rated current 25 Amp · · Rated residual operating current 30mA · · Single Pole + Solid Neutral · · Tripping characteristics Type B · · Type A · · Flying neutral lead: 700mm · · Breaking capacity: 10kA · · Complies with BS EN 61009-1, BS IEC 1009-2-2 · · Terminal Capacities 25mm2 rigid / 16mm2 flexible · · Insulated DIN clip

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ADA125U Categories: , , Brand: Part Number: 2501145630

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) B Voltage type AC Frequency 50 Hz Leakage current type A Rated short-circuit breaking capacity according to EN 61009 10 kA Number of poles (total) 1 Rated fault current 0.03 A Rated current 25 A Rated voltage 240 V · Technical Data Sheet – Click to Download
