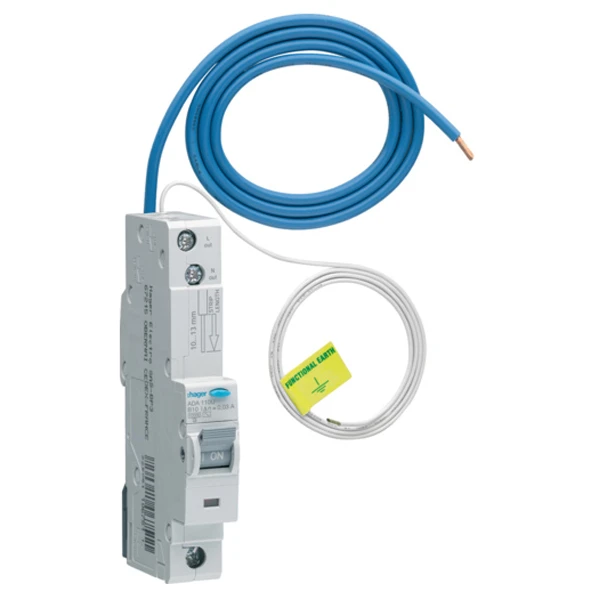

RCBO Single Pole Class A Type B 32A 30Ma 10Ka 1 Module
£43.45 Incl. VAT
Hager ADA Electronic Residual Current Circuit Breaker with Overcurrent Protection (RCBO) provides MCB overload protection and RCD earth leakage protection (protects against electrical shocks by direct or indirect contact). This is ideal residential, commercial and industrial applications. This RCDO is designed for din rail mounting in Hager 3 phase distribution boards. It is commonly used in light commercial environments such as offices with large fluorescent or LED lighting circuits · · · Rated current 32 Amp · · Rated residual operating current 30mA · · Single Pole + Solid Neutral · · Tripping characteristics Type B · · Type A · · Flying neutral lead: 700mm · · Breaking capacity: 10kA · · Complies with BS EN 61009-1, BS IEC 1009-2-2 · · Terminal Capacities 25mm2 rigid / 16mm2 flexible · · Insulated DIN clip
Out of stock
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) B Frequency 50 Hz Voltage type AC Leakage current type A Rated current 32 A Rated voltage 240 V Number of poles (total) 1 Rated fault current 0.03 A Rated short-circuit breaking capacity according to EN 61009 10 kA · Technical Data Sheet – Click to Download
