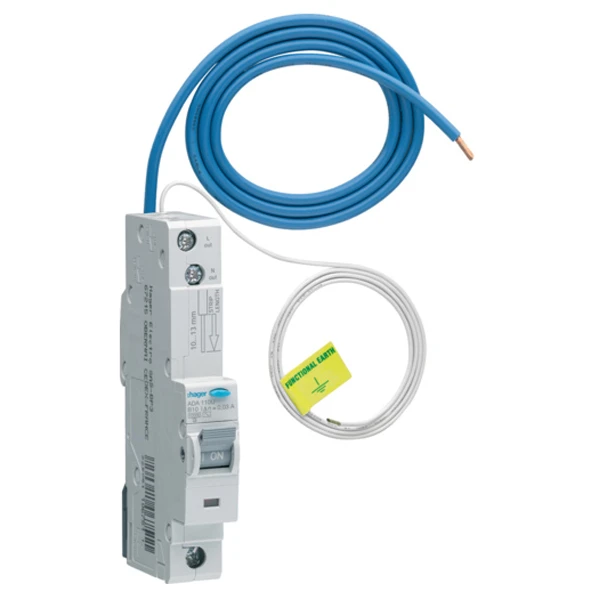

RCBO Single Pole Class A Type B 45A 30Ma 10Ka 1 Module
RCBO Single Pole Class A Type B 45A 30Ma 10Ka 1 Module
RCBO Single Pole Class A Type B 45A 30Ma 10Ka 1 Module - Image 2

RCBO Single Pole Class A Type B 45A 30Ma 10Ka 1 Module

£51.07 Incl. VAT

Hager ADA Electronic Residual Current Circuit Breaker with Overcurrent Protection (RCBO) provides MCB overload protection and RCD earth leakage protection (protects against electrical shocks by direct or indirect contact). This is ideal residential, commercial and industrial applications. This RCDO is designed for din rail mounting in Hager domestic consumer units and 3 phase fuseboards. It is commonly used in light commercial environments such as offices with large fluorescent or LED lighting circuits. · · · Reduced height · · B-curve · · 70 x 110mm size

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: ADA145U Categories: , , Brand: Part Number: 2501145606

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) B Frequency 50 Hz Voltage type AC Leakage current type A Number of poles (total) 1 Rated short-circuit breaking capacity according to EN 61009 10 kA Rated current 45 A Rated voltage 240 V Rated fault current 0.03 A · Technical Data Sheet – Click to Download
