RCBO Single Pole & Neutral Type B 32A 30mA 19 x 110 x 85mm
RCBO Single Pole & Neutral Type B 32A 30mA 19 x 110 x 85mm
RCBO Single Pole & Neutral Type B 32A 30mA 19 x 110 x 85mm - Image 2
RCBO Single Pole & Neutral Type B 32A 30mA 19 x 110 x 85mm - Image 3

RCBO Single Pole & Neutral Type B 32A 30mA 19 x 110 x 85mm

£360.91 Incl. VAT

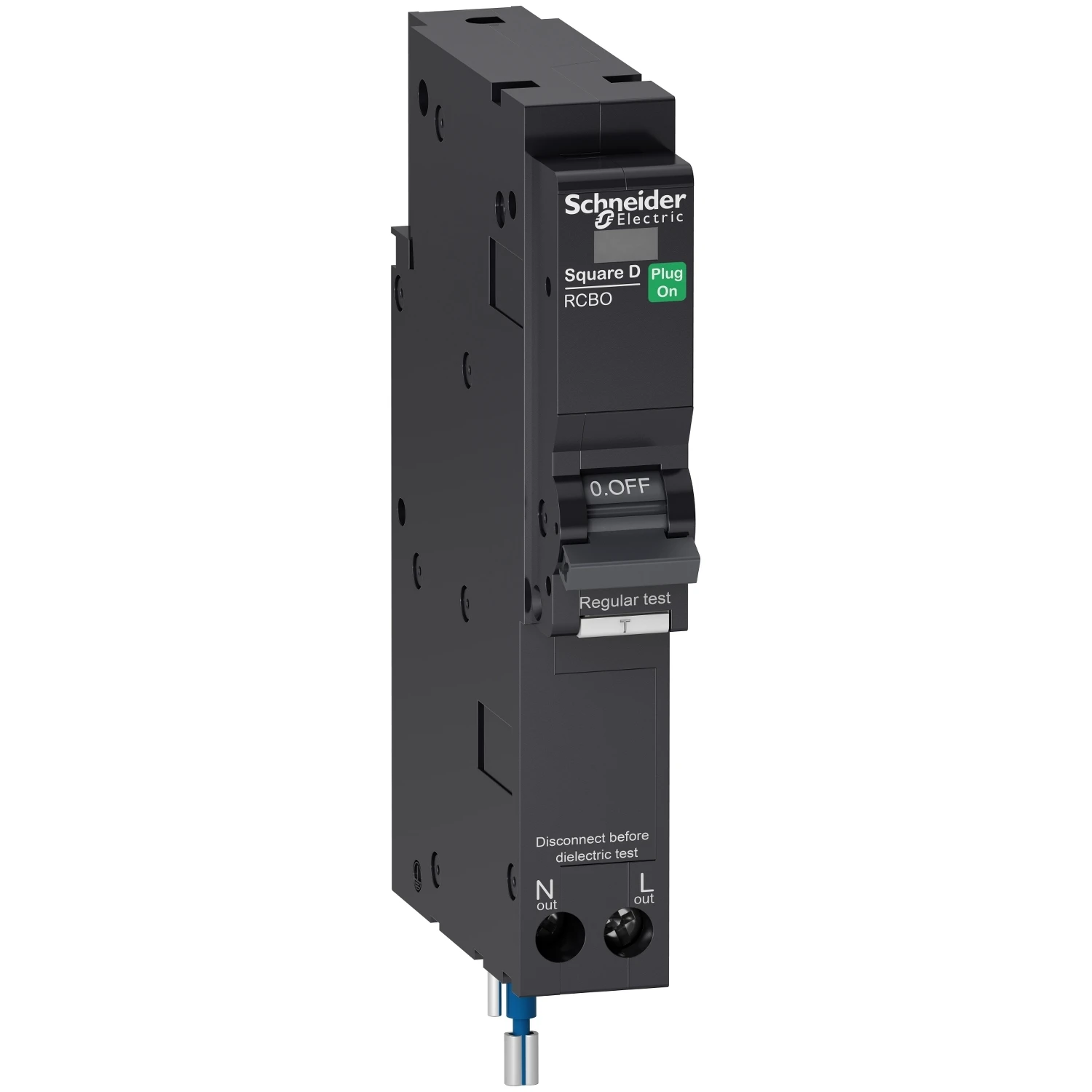

QOvs – earth leakage circuit breaker – 1P + Ns – B curve – 32A – 30mA · · · This QOvs is a modular residual current breaker with overcurrent protection (RCBO). · · It is a 1P+Ns circuit breaker with 1 protected pole and 32A In rated current and B tripping curve. · · The earth leakage protection class is AC type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. · · The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. · · This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. · · It has a plug on system for fast and easy installation, no conneciton errors and more safety. · · It also has an operating test button on the front panel. · · This product is compliant with IEC 61009-2-2 and AS/NZS 61009.1 standard. · · It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 230VAC or 240VAC.

Out of stock

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: QO132B10RCBO30F Categories: , , Brand: Part Number: 2500599025

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Rated voltage 240 V Rated current 32 A Recess depth 59 mm Width in number of modular spacings 1 Pollution degree 3 Over voltage category 3 Rated insulation voltage Ui 400 V Rated fault current 0.03 A Number of poles (total) 2 Number of protected poles 1 Current limiting class 3 Surge current capacity 0.25 kA Ambient temperature during operating -15 – 60 °C Connectable conductor cross section multi-wired 1 – 10 mm² Connectable conductor cross section solid-core 1 – 16 mm² Rated short-circuit breaking capacity according to EN 61009 – kA Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity IEC 60947-2 – kA Concurrently switching N-neutral No Suitable for flush-mounted installation No Anti-nuisance tripping version No With interlocking device No · Technical Data Sheet – Click to Download
