RCBO Single Pole Type B 10A 30mA
£360.91 Incl. VAT

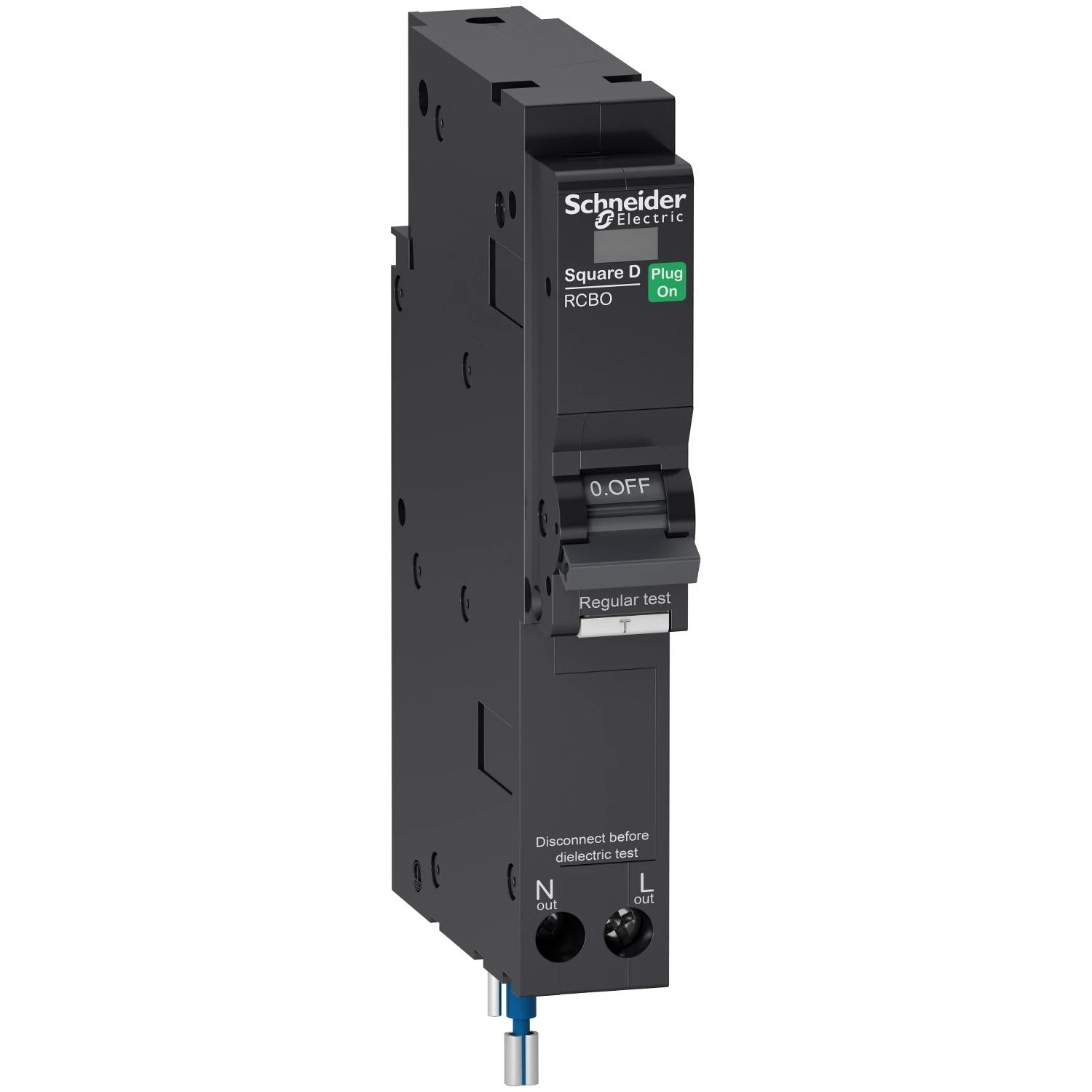

QOVS RCBO 30mA Type B 10A · · · This QOvs is a modular residual current breaker with overcurrent protection (RCBO). · · It is a 1P+Ns circuit breaker with 1 protected pole and 10A In rated current and B tripping curve. · · The earth leakage protection class is AC type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. · · The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. · · This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. · · It has a plug on system for fast and easy installation, no conneciton errors and more safety. · · It also has an operating test button on the front panel. · · This product is compliant with IEC 61009-2-2 and AS/NZS 61009.1 standard. · · It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 230VAC or 240VAC.
3 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Recess depth 59 mm Tripping characteristic (type/curve) B Rated current 10 A Rated voltage 240 V Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 1 Current limiting class 3 Number of protected poles 1 Number of poles (total) 2 Surge current capacity 0.25 kA Pollution degree 3 Over voltage category 3 Suitable for flush-mounted installation No Ambient temperature during operating -15 – 60 °C Connectable conductor cross section multi-wired 1 – 10 mm² Connectable conductor cross section solid-core 1 – 16 mm² Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Rated fault current 0.03 A Rated insulation voltage Ui 400 V Anti-nuisance tripping version No Concurrently switching N-neutral No With interlocking device No · Technical Data Sheet – Click to Download
