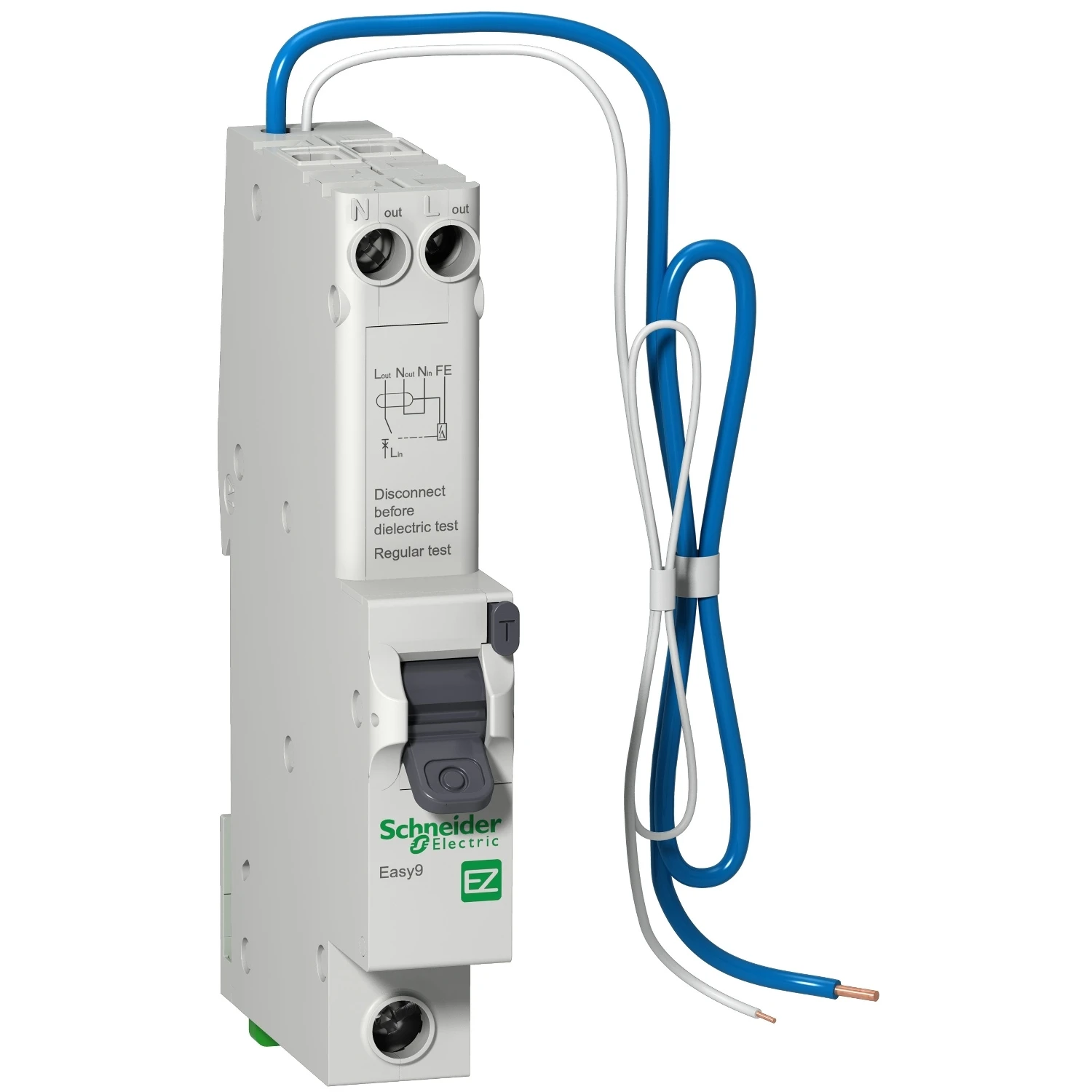

Schneider Electric RCBO Single Pole Type B 10A 30mA 6kA 1 Module
Schneider Electric RCBO Single Pole Type B 10A 30mA 6kA 1 Module
Schneider Electric RCBO Single Pole Type B 10A 30mA 6kA 1 Module - Image 2
Schneider Electric RCBO Single Pole Type B 10A 30mA 6kA 1 Module - Image 3

Schneider Electric RCBO Single Pole Type B 10A 30mA 6kA 1 Module

£33.16 Incl. VAT

Schneider Electric single pole 240v 10amp 30ma residual circuit breaker with overcurrent protection, din rail mounted EZ9D16810 · · · Type A, 30mA Earth leakage protection · · B Curve · · 6kA Breaking Capacity · · Provides protection from short circuits, the cables from overloads and persons from electric shocks by direct contact · · Operating test button (T) on front panel · · Fault tripping indication on front panel · · Cable length 1000mm · · IP20 · · BSEN61009-1 Compliant · · The Ue operational voltage is 230VAC.

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EZ9D16810 Categories: , , Brand: Product Code: 2500605475

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Recess depth 50 mm Tripping characteristic (type/curve) B Over voltage category 4 Rated current 10 A Rated impulse-withstand voltage (Uimp) 4 kV Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Pollution degree 2 Number of poles (total) 2 Current limiting class 3 Surge current capacity 0.25 kA Number of protected poles 1 Rated fault current 0.03 A Rated voltage 230 V Rated insulation voltage Ui 500 V Width in number of modular spacings 1 Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating -15 – 60 °C Concurrently switching N-neutral Yes Anti-nuisance tripping version No With interlocking device No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2199806
