RCBO Single Pole Type B 16A 30mA 6kA 1 Module
RCBO Single Pole Type B 16A 30mA 6kA 1 Module
RCBO Single Pole Type B 16A 30mA 6kA 1 Module - Image 2
RCBO Single Pole Type B 16A 30mA 6kA 1 Module - Image 3

RCBO Single Pole Type B 16A 30mA 6kA 1 Module

£45.46 Incl. VAT

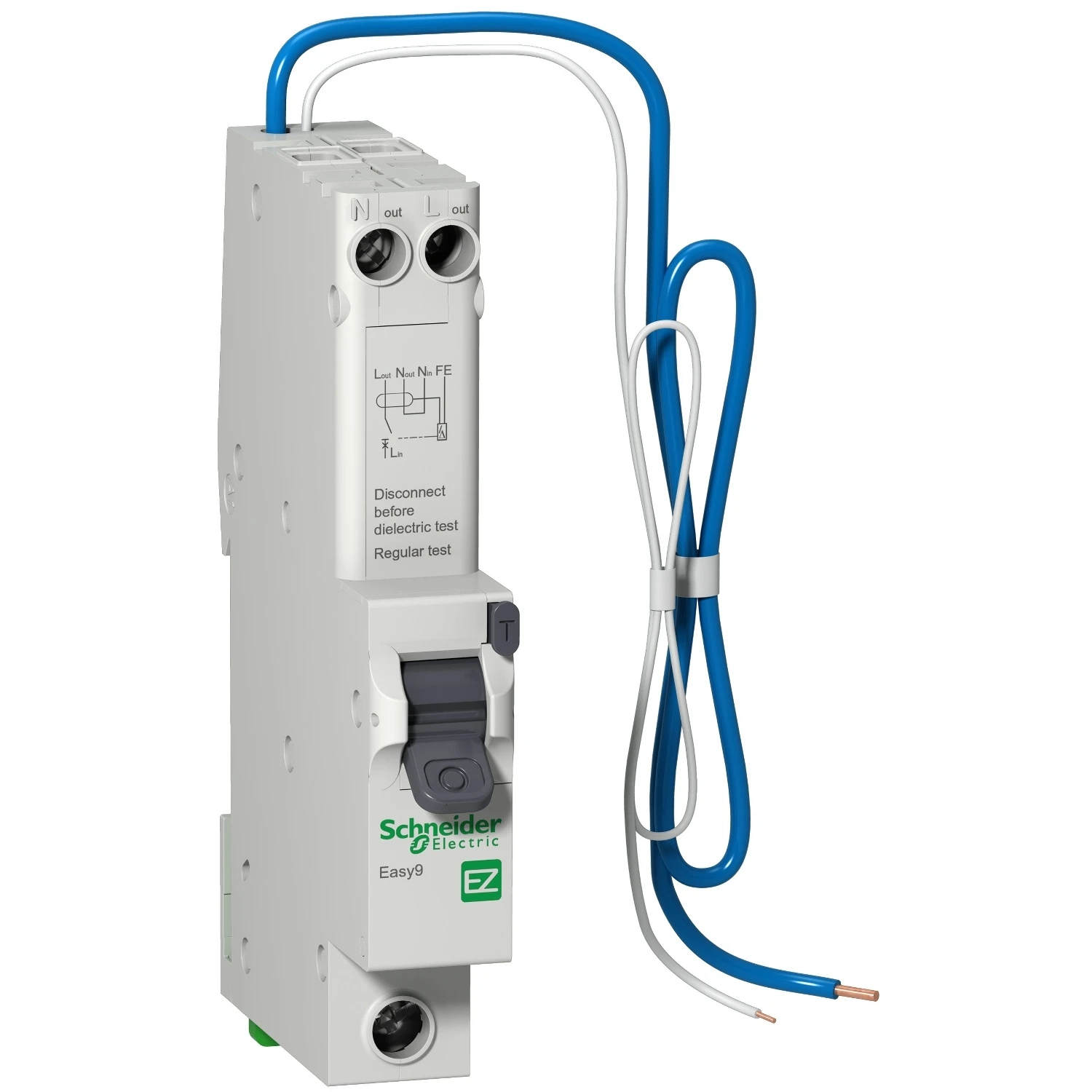

Schneider Electric single pole 240v 16amp 30ma residual circuit breaker with overcurrent protection, din rail mounted EZ9D16816 · · · Type A, 30mA Earth leakage protection · · B Curve · · 6kA Breaking Capacity · · Provides protection from short circuits, the cables from overloads and persons from electric shocks by direct contact · · Operating test button (T) on front panel · · Fault tripping indication on front panel · · Cable length 1000mm · · IP20 · · BSEN61009-1 Compliant · · The Ue operational voltage is 230VAC.

74 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: EZ9D16816 Categories: , , Brand: Part Number: 2500605476

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Rated current 16 A Tripping characteristic (type/curve) B Recess depth 50 mm Pollution degree 2 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Rated voltage 230 V Width in number of modular spacings 1 Over voltage category 4 Surge current capacity 0.25 kA Number of poles (total) 2 Current limiting class 3 Rated impulse-withstand voltage (Uimp) 4 kV Rated fault current 0.03 A Number of protected poles 1 Rated insulation voltage Ui 500 V Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating -15 – 60 °C With interlocking device No Suitable for flush-mounted installation No Anti-nuisance tripping version No Concurrently switching N-neutral Yes · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2199806
