Wiska
Wiska Gland for Consumer Unit with 32mm Entry Thread For Use With 25mm Tails
Product code: 10111319
£5.53inc VAT£4.61 ex VAT
In stock
Product image supplied by the manufacturer
Circuit Breakers & Devices

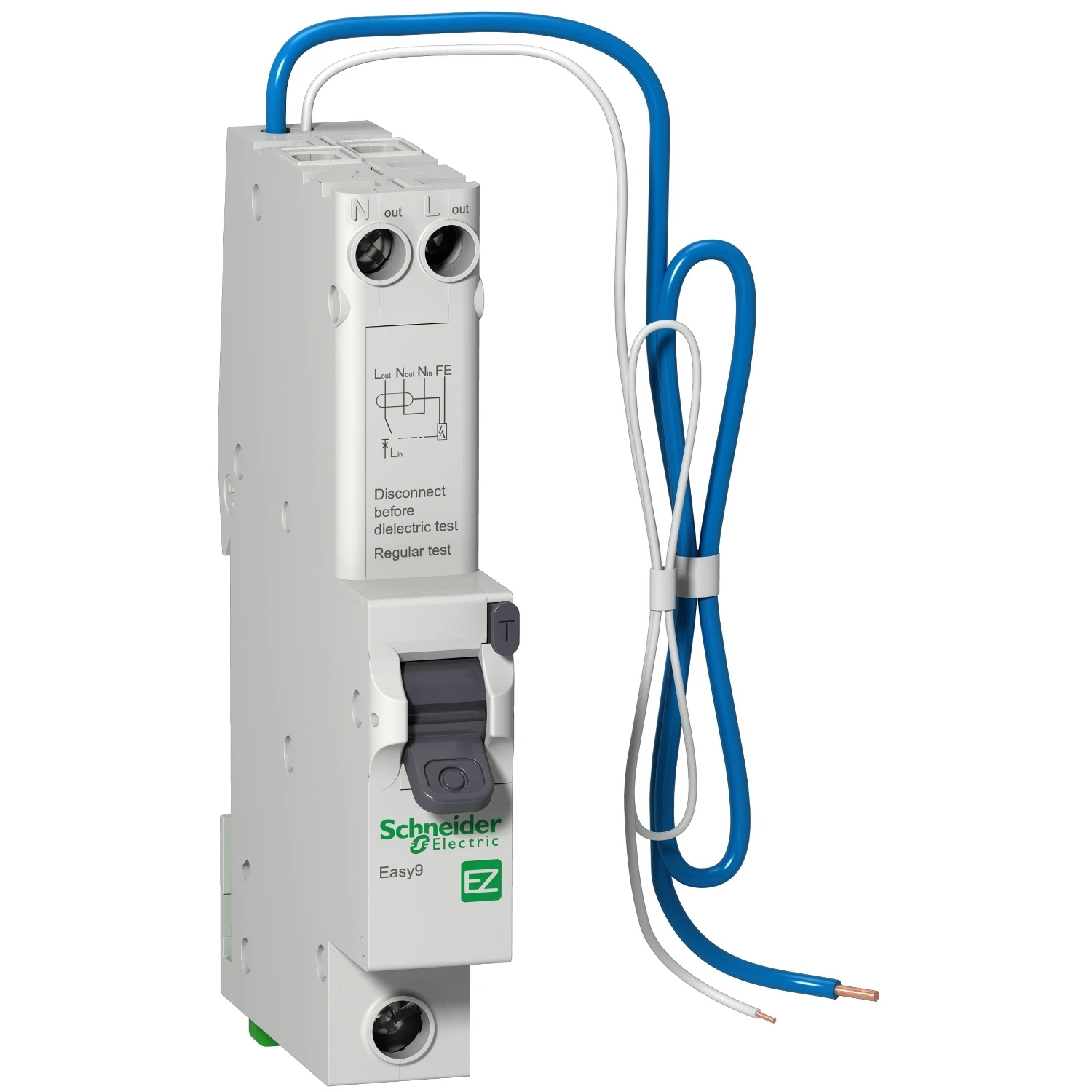

Schneider Electric RCBO Single Pole Type B 6A 30mA 6kA 1 Module
Brand: Schneider ElectricProduct code: EZ9D16806Go Magpie Ref: 5060062302181
Schneider Electric single pole 240v 6amp 30ma residual circuit breaker with overcurrent protection, din rail mounted EZ9D16806 · · · Type A, 30mA Earth leakage protection · · B Curve · · 6kA Breaking Capacity · · Provides protection from short circuits, the cables from overloads and persons from electric shocks by direct contact · · Operating test button (T) on front panel · · Fault tripping indication on front panel · · Cable length 1000mm · · IP20 · · BSEN61009-1 Compliant · · The Ue operational voltage is 230VAC.
£34.31inc VAT£28.59 ex VAT
In stock
UK deliveryStandard shipping is £2.99 inc VAT on eligible orders. Final delivery options are confirmed at checkout.
Quantity
1
✓ Secure checkout✓ UK customer support✓ Trusted suppliers
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Tripping characteristic (type/curve) B Rated insulation voltage Ui 500 V Rated voltage 230 V Recess depth 50 mm Over voltage category 4 Pollution degree 2 Rated impulse-withstand voltage (Uimp) 4 kV Rated current 6 A Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Surge current capacity 0.25 kA Number of poles (total) 2 Current limiting class 3 Number of protected poles 1 Rated fault current 0.03 A Width in number of modular spacings 1 Connectable conductor cross section solid-core 1 – 25 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating -15 – 60 °C Concurrently switching N-neutral Yes With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2199806
