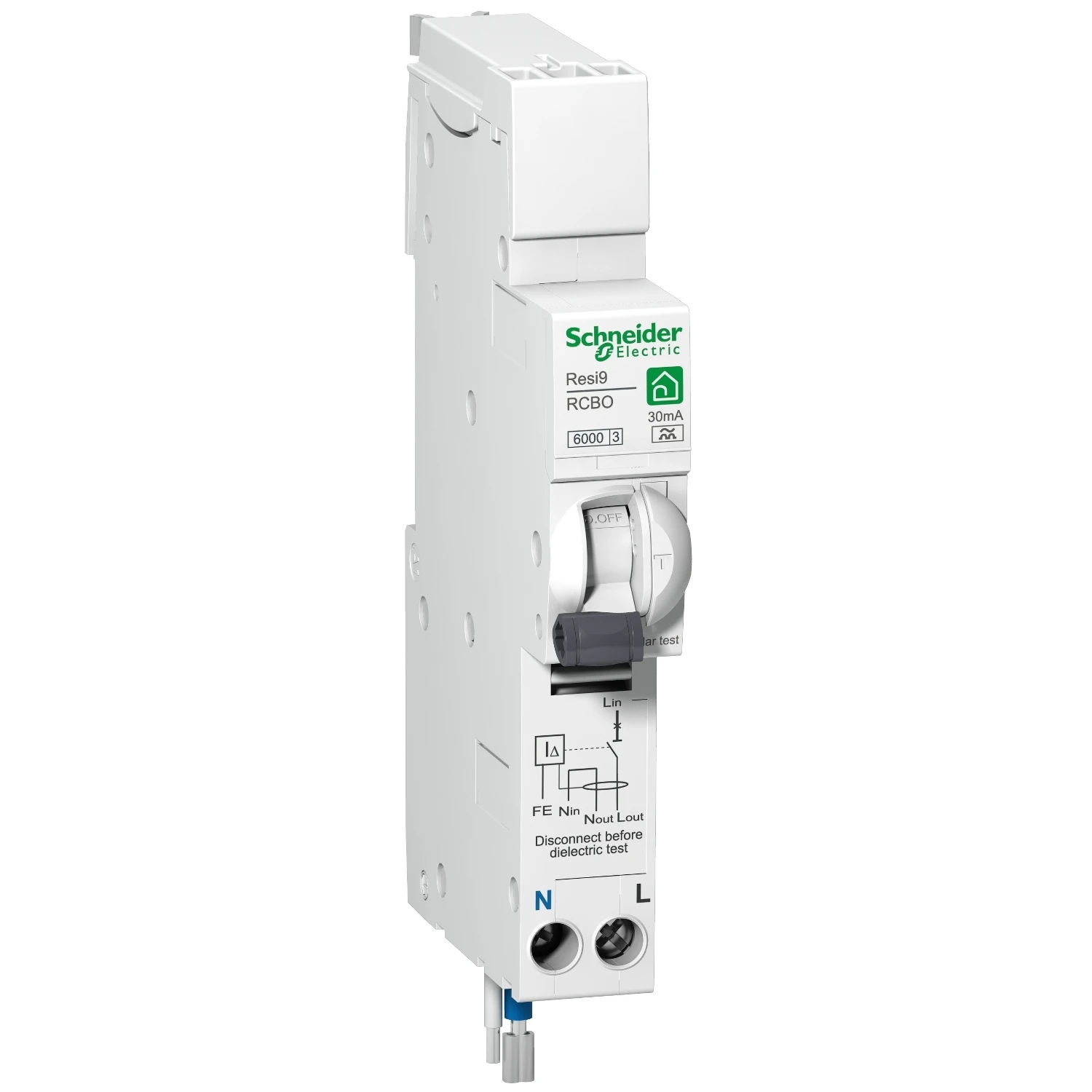

Schneider Electric RCBO Single Pole&Neutral Type B 16A 30mA 6kA 18 x 123 x 78mm
Schneider Electric RCBO Single Pole&Neutral Type B 16A 30mA 6kA 18 x 123 x 78mm
Schneider Electric RCBO Single Pole&Neutral Type B 16A 30mA 6kA 18 x 123 x 78mm - Image 2
Schneider Electric RCBO Single Pole&Neutral Type B 16A 30mA 6kA 18 x 123 x 78mm - Image 3

Schneider Electric RCBO Single Pole&Neutral Type B 16A 30mA 6kA 18 x 123 x 78mm

£28.33 Incl. VAT

[In] rated current:16 A, breaking capacity:6000 A, curve code:B, device short name:Resi9 RCBO, earth-leakage protection class:class A, earth-leakage protection time · · · Protection against short circuits · · Protection against cable overloads · · Protection against electric shocks by direct contact · · Thermal-magnetic trip unit technology · · Neutral position left · · Operating temperature -25 to 40 °C · · Padlock locking device · · Voltage dependent on residual current tripping technology · · Instantaneous earth-leakage protection time delay · · Integrated earth-leakage protection

Typically available in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: R9D87816 Categories: , , Brand: Product Code: 2500632487

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) B Frequency 50 Hz Degree of protection (IP rating) IP20 Leakage current type A Rated current 16 A Rated voltage 230 V Voltage type AC Rated fault current 0.03 A Width in number of modular spacings 1 Number of poles (total) 2 Current limiting class 3 Number of protected poles 2 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Connectable conductor cross section solid-core 1 mm² Connectable conductor cross section multi-wired 1 mm² Ambient temperature during operating 25 °C With interlocking device No Concurrently switching N-neutral Yes · Technical Data Sheet – Click to Download
