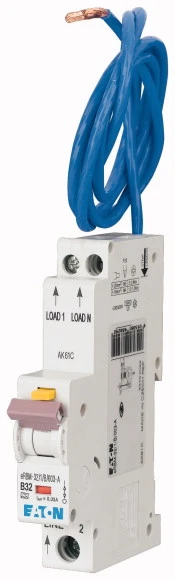

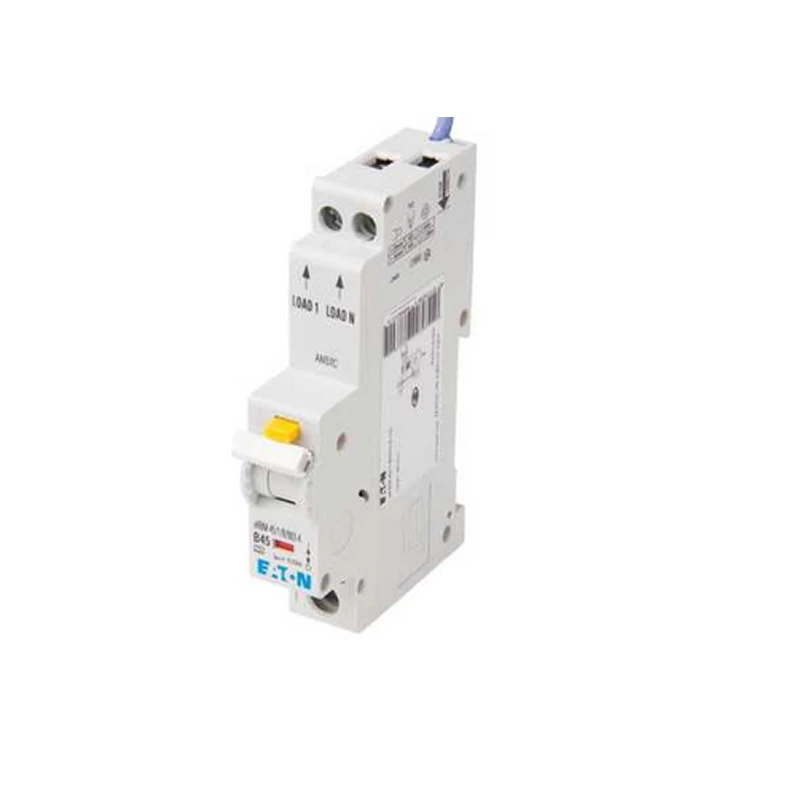

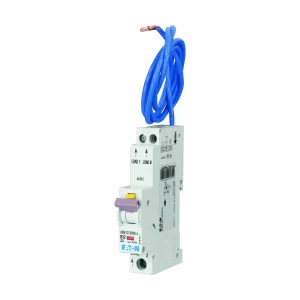

RCBO Single Pole&Neutral Type B 45A 30mA 10kA

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Frequency 50 Hz Degree of protection (IP rating) IP20 Tripping characteristic (type/curve) B Leakage current type A Rated short-circuit breaking capacity according to EN 61009 – kA Recess depth 69.5 mm Rated current 45 A Current limiting class 3 Rated voltage – V Number of poles (total) 1 Power loss – W Pollution degree 2 Rated short-circuit breaking capacity Icn according to EN 61009-1 – kA Rated impulse-withstand voltage (Uimp) – kV Rated fault current 0.03 A Rated insulation voltage Ui – V Number of protected poles 1 Rated short-circuit breaking capacity IEC 60947-2 – kA Surge current capacity – kA Over voltage category 3 Width in number of modular spacings 1 Ambient temperature during operating -25 – 40 °C Connectable conductor cross section solid-core – mm² Connectable conductor cross section multi-wired – mm² Flush-mounted installation No Anti-nuisance tripping version No Concurrently switching N-neutral No With interlocking device No · Technical Data Sheet – Click to Download
