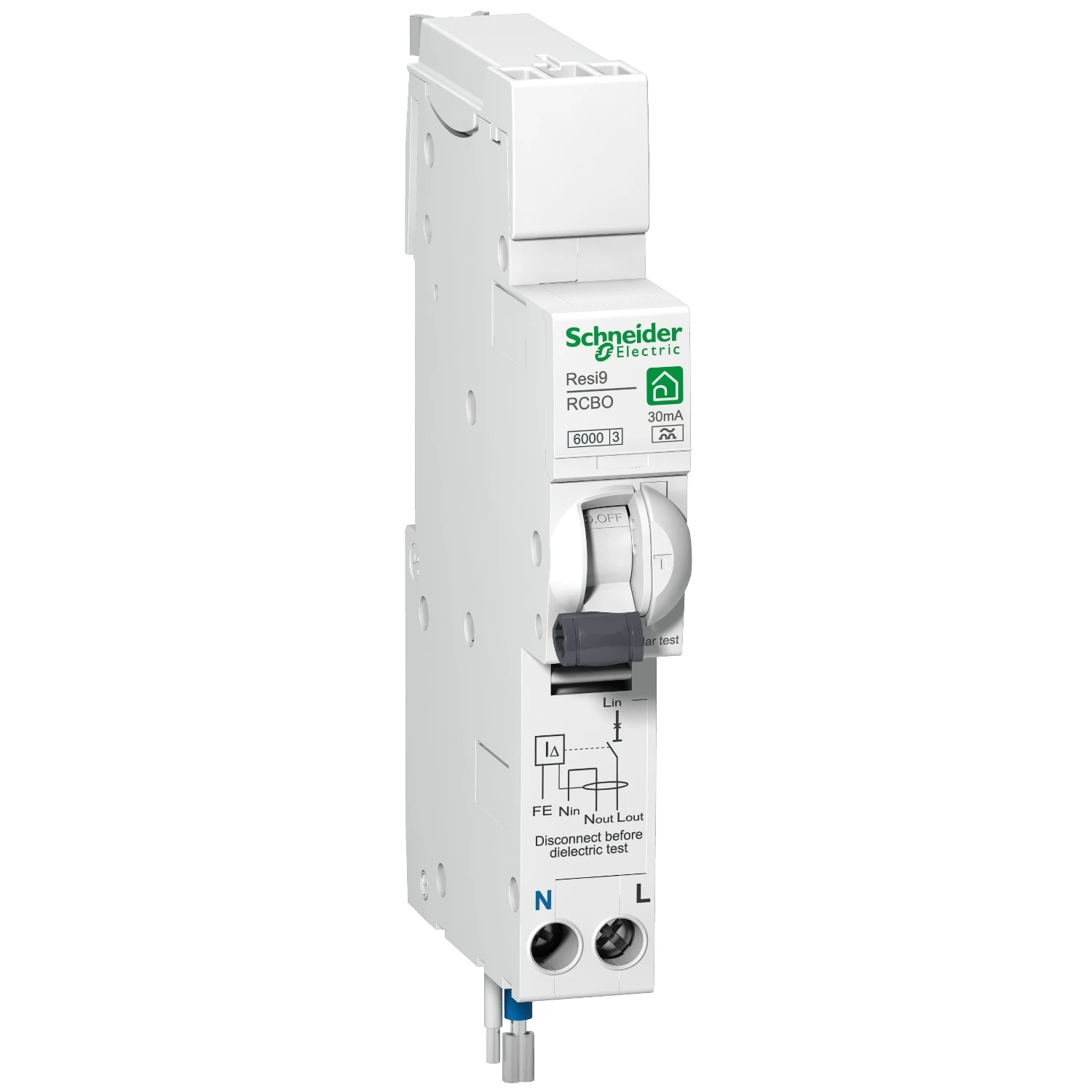

RCBO Single Pole&Neutral Type B 6A 30mA 6kA 18 x 123 x 78mm
RCBO Single Pole&Neutral Type B 6A 30mA 6kA 18 x 123 x 78mm
RCBO Single Pole&Neutral Type B 6A 30mA 6kA 18 x 123 x 78mm - Image 2
RCBO Single Pole&Neutral Type B 6A 30mA 6kA 18 x 123 x 78mm - Image 3

RCBO Single Pole&Neutral Type B 6A 30mA 6kA 18 x 123 x 78mm

£56.04 Incl. VAT

The Resi9 range of consumer units provides arguably the highest levels of residential circuit protection safety. With a wide range of switch disconnectors, RCDs and MCBs, complimented by a single pole RCBO, Resi9 can provide continuity of supply in the event of fault. · · · Plug-on devices with a unique device fixing system · · Applications Include; Private & Social Housing, Local Authorities, Small offices & Small retail units. · · Retains plug-on philosophy for speed of installation and guaranteed connections · · BS EN 61009-1 · · Green Premium Product · · Operating temperature -25 to 40 °C · · Padlock locking device · · Voltage dependent on residual current tripping technology · · Instantaneous earth-leakage protection time delay · · Integrated earth-leakage protection

1 available – delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: R9D87806 Categories: , , Brand: Part Number: 2500632485

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Pollution degree 2 Rated short-circuit breaking capacity Icn according to EN 61009-1 6 kA Tripping characteristic (type/curve) B Current limiting class 3 Surge current capacity 0.25 kA Rated impulse-withstand voltage (Uimp) 4 kV Over voltage category – Rated voltage 230 V Rated current 6 A Number of poles (total) 2 Connectable conductor cross section multi-wired 1 – 16 mm² Connectable conductor cross section solid-core 1 – 25 mm² Recess depth 43.5 mm Rated fault current 0.03 A Number of protected poles 2 Rated insulation voltage Ui 500 V Width in number of modular spacings 1 Ambient temperature during operating 25 – 40 °C Anti-nuisance tripping version No Concurrently switching N-neutral Yes With interlocking device No Suitable for flush-mounted installation No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2199804
