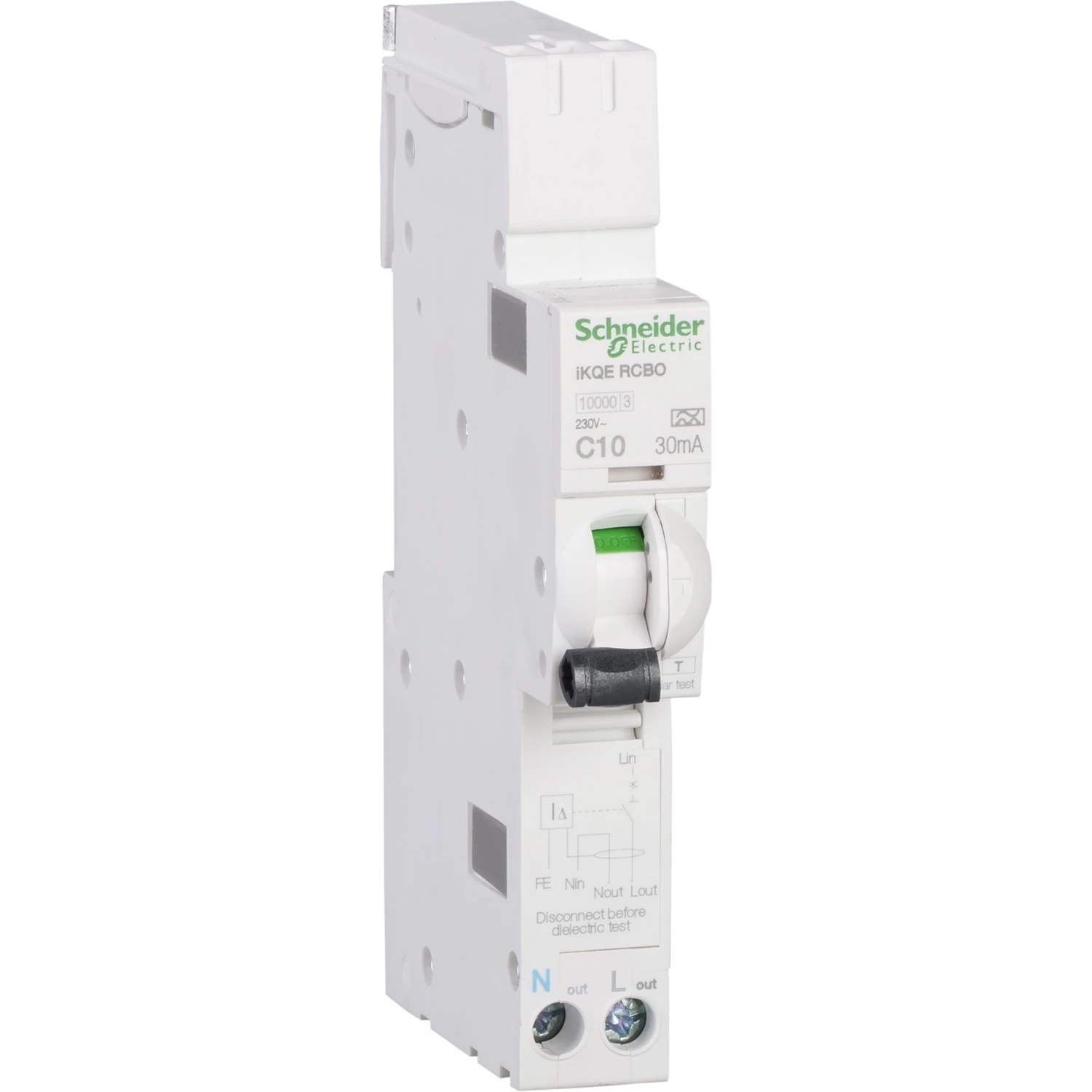

Schneider Electric RCBO SP Class A Type C 10A 30mA 10kA Plug-On
Schneider Electric RCBO SP Class A Type C 10A 30mA 10kA Plug-On
Schneider Electric RCBO SP Class A Type C 10A 30mA 10kA Plug-On - Image 2
Schneider Electric RCBO SP Class A Type C 10A 30mA 10kA Plug-On - Image 3

Schneider Electric RCBO SP Class A Type C 10A 30mA 10kA Plug-On

£74.35 Incl. VAT

The Schneider LoadCentre KQ SEE110C03 is a 10 amp 30 milliamp single pole RCBO. This Schneider LoadCentre KQ RCBO has a click-in busbar for speed of installation and guaranteed connection, has a 10kA breaking capacity and has a trip free mechanism that operates even when the toggle is locked on. The LoadCentre KQ MCB’s are lockable in the on or off position and is suitable for any Schneider Loadcentre KQ A and B type distribution boards. · · · BS EN 61009 Compliant · · 10kA Breaking Capacity · · Speed of connection of Plug-On devices – guaranteed connection Plug-On devices · · Control type toggle · · Thermal-magnetic trip unit technology · · Works using the light scatter principle · · Well suited for bedrooms and escape routes · · This product is compliant with IEC 61009-2-2 and IEC 61009-1 standard. · · It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 150VAC to 230VAC.

✓ In stock – Delivery in 1–2 days

GUARANTEED SAFE CHECKOUT
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
SKU: SEE110C03 Categories: , , Brand: Product Code: 2500577502

Description

Technical Specifications  Technical Specifications Earth leakage circuit breaker/RCBO Tripping characteristic (type/curve) C Mounting method DIN rail Rated current 10 A Rated voltage 230 V Recess depth 70 mm Pollution degree 3 Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Over voltage category 3 Surge current capacity 0.25 kA Rated impulse-withstand voltage (Uimp) 4 kV Width in number of modular spacings 2 Current limiting class 3 Number of poles (total) 2 Number of protected poles 1 Rated fault current 0.03 A Rated insulation voltage Ui 400 V Connectable conductor cross section solid-core 1 – 16 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating -25 – 55 °C Concurrently switching N-neutral Yes With interlocking device No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download · Manual: https://asset.eezybridge.com/ad7e7626-8f4a-4edb-b78d-9ca040e321dd/2200034
