RCBO SP Class A Type C 40A 30mA 10kA Plug-On
£53.89 Incl. VAT

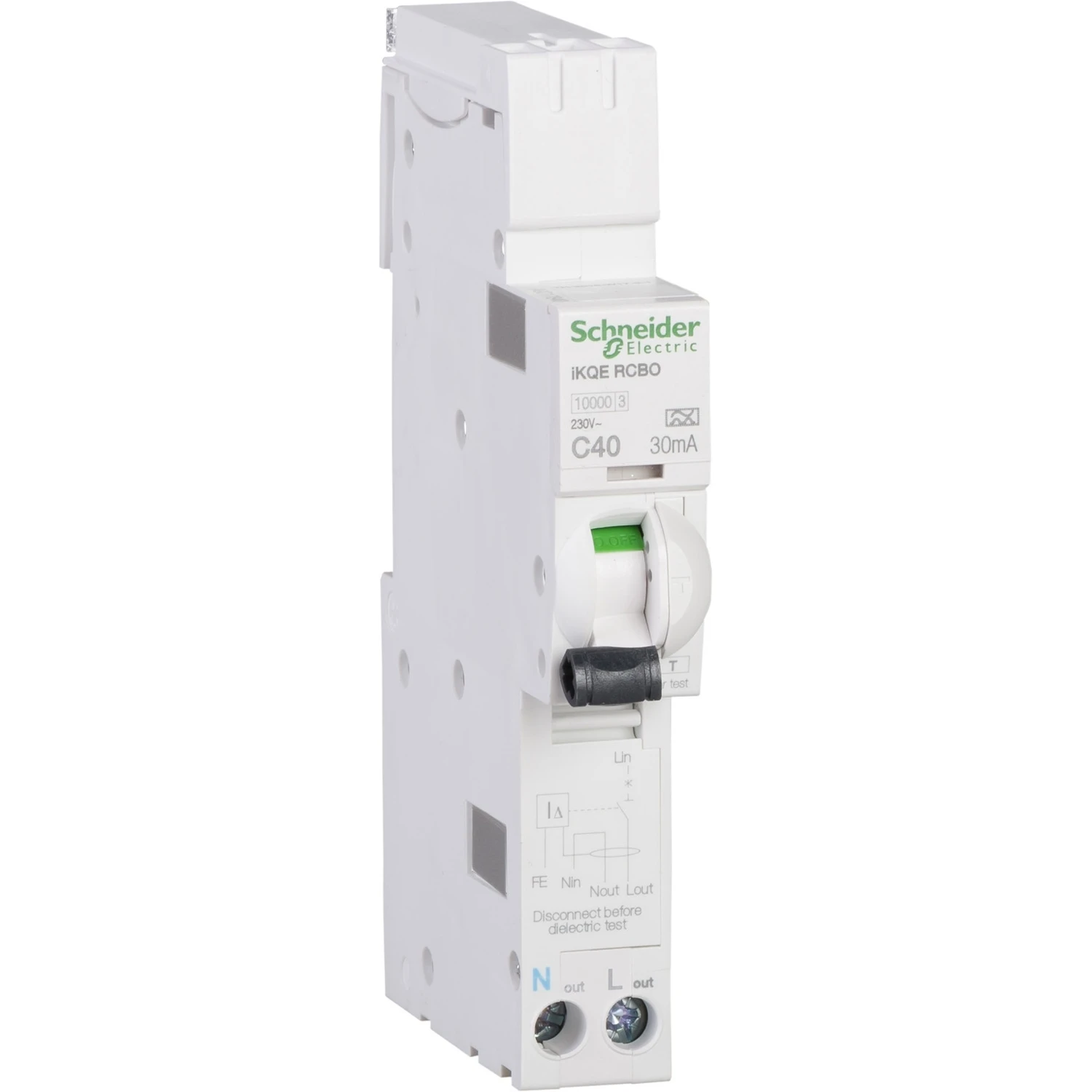

The Schneider LoadCentre KQ SEE140C03 is a 40 amp 30 milliamp single pole RCBO. This Schneider LoadCentre KQ RCBO has a click-in busbar for speed of installation and guaranteed connection, has a 10kA breaking capacity and has a trip free mechanism that operates even when the toggle is locked on. The LoadCentre KQ MCB’s are lockable in the on or off position and is suitable for any Schneider Loadcentre KQ A and B type distribution boards. · · · BS EN 61009 Compliant · · 10kA Breaking Capacity · · Speed of connection of Plug-On devices – guaranteed connection Plug-On devices · · Control type toggle · · Thermal-magnetic trip unit technology · · Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. · · Its fast closing mechanism independent of manual operation improves its service life. · · This product is compliant with IEC 61009-2-2 and IEC 61009-1 standard. · · It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. · · The Ue operational voltage is 150VAC to 230VAC.
8 available – delivery in 1–2 days
Description
Technical Specifications Technical Specifications Earth leakage circuit breaker/RCBO Mounting method DIN rail Tripping characteristic (type/curve) C Recess depth 70 mm Rated insulation voltage Ui 400 V Rated current 40 A Rated voltage 230 V Number of poles (total) 2 Current limiting class 3 Surge current capacity 0.25 kA Over voltage category 3 Rated impulse-withstand voltage (Uimp) 4 kV Pollution degree 3 Number of protected poles 1 Rated fault current 0.03 A Width in number of modular spacings 2 Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA Connectable conductor cross section solid-core 1 – 16 mm² Connectable conductor cross section multi-wired 1 – 16 mm² Ambient temperature during operating -25 – 55 °C With interlocking device No Concurrently switching N-neutral Yes Suitable for flush-mounted installation No Anti-nuisance tripping version No · Technical Data Sheet – Click to Download
