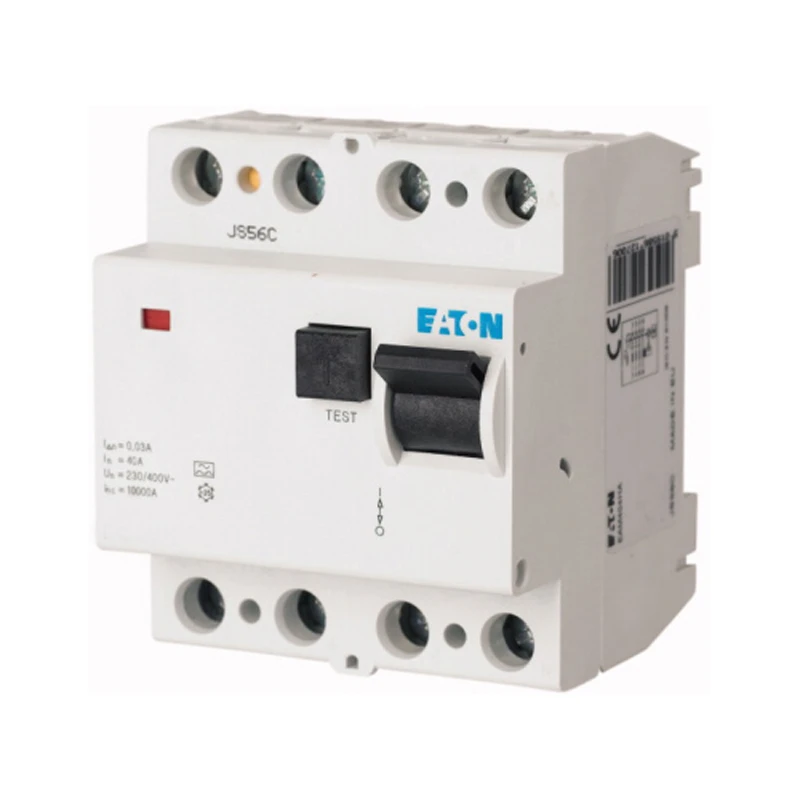

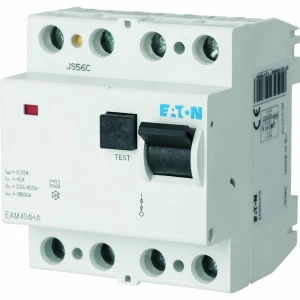

RCCB Four Pole 40A 30mA 10kA Grey
£189.79 Incl. VAT
Full range of compact residual current circuit-breaker models for a wide variety of applications, for fault and additional protection, large amount of available rated operational currents, comprehensive range of accessories, true contact position indicator, automatic reclosing possible, suitable for use outdoors (building and outdoor distribution boards) at temperatures as low as -25 °C · · · Manufactured to IEC EN/61008 and meets the latest European and International standards · · This devices will accommodate cables up to 35mm² · · Can be equipped with a range of modular accessories · · Tripping is line voltage-independent, RCD is suitable for “fault current/residual current protection · · Universal tripping signal switch suitable · · Type -A: Protects against special forms of non-smoothed residual pulsating DC
Out of stock
Description
Technical Specifications Technical Specifications Residual current circuit breaker (RCCB) Degree of protection (IP rating) IP20 Mounting method DIN rail Frequency 50 Hz Leakage current type AC Voltage type AC Rated voltage 400 V Rated insulation voltage Ui 440 V Recess depth 70.5 mm Rated current 40 A Pollution degree 2 Rated fault current 0.03 A Connectable conductor cross section solid-core 1.5 – 35 mm² Width in number of modular spacings 4 Number of poles 4 Short-circuit breaking capacity (Icw) 10 kA Surge current capacity 0.25 kA Rated impulse-withstand voltage (Uimp) 4 kV RAL-number (similar) 7035 Connectable conductor cross section multi-wired 1.5 – 16 mm² Ambient temperature during operating -25 – 60 °C Selective protection No Additional equipment possible Yes Short-time delayed tripping No Explosion-proof No With interlocking device Yes · Technical Data Sheet – Click to Download
